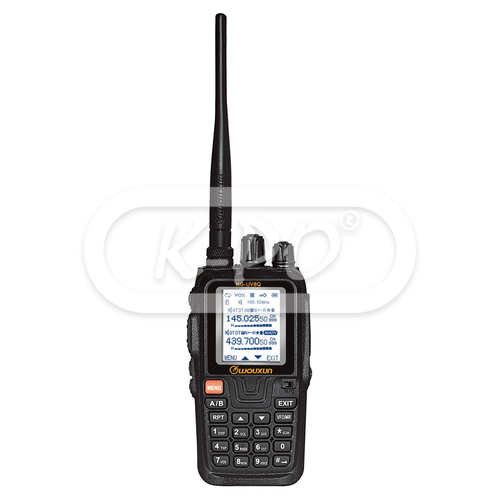

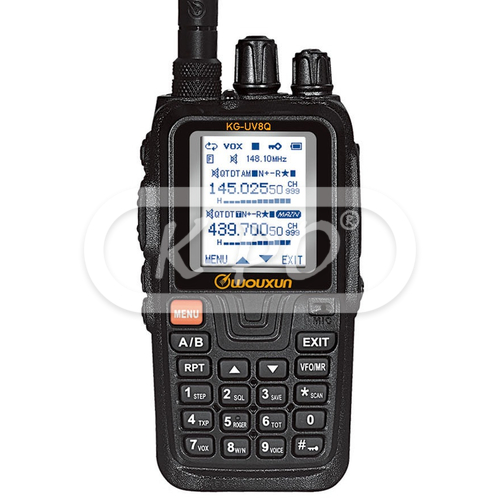

Wouxun - KG-UV8Q Wouxun - KG-UV8Q

Wouxun - KG-UV8Q

Artikelnummer: 34845

The Wouxun KG-UV8Q is a dual band transceiver with duplex mode and is suitable for 144-146 / 430-440 MHz. The KG-UV8Q will be delivered with a 1700 mAh Li-Ion battery pack.

Frequentie bereik: RX/TX: 144-146 / 430-440 MHz, RX: 76-108 MHz
Niet op voorraad - Levertijd in overleg
€ 89,95 (74.34 excl. 21% BTW)

Features

  • Display: Yes,large color display
  • VOX function: Yes
  • DTMF: Yes, decoding and encoding
  • Emergency (SOS) function: Yes
  • Flashlight: Yes
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • Voice guide: English and Chinese
  • Calls: Yes, group and selective calls
  • Single-tone pulse frequency: 1000 - 1450 - 1750 - 2100 Hz
  • QT/DQT: Yes, decoding, encoding and scan
  • Program: Yes, by computer
  • Remote alarm: Yes
  • Reverse frequency: Yes
  • Screen display: English and Chinese
  • Duplex Repeater: Yes, VHF to UHF or UHF to VHF
  • Duplex Work Mode: Yes, TX on one area while RX on the other area simultaneously
  • Dual Receiving: Yes, RX on the same/different bands of A&B areas simultaneously

Elektrische eigenschappen

  • Frequency step: 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 999
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +40℃

Transmitter

  • Power output (Watts): VHF: 5 Watts / UHF: 4 Watts
  • Work mode: F2D / F3E
  • Antenna impedance: 50 Ohm
  • Frequency stability: ±2.5 PPM
  • Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
  • Max. frequency deviation: Wide: ±5 KHz / Narrow: ≤±2.5 KHz
  • Audio response: Wide: 300-3000 Hz +1 to -3 dB / Narrow: 300-2550 Hz +1 to -3 dB
  • Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
  • Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
  • Modulation distortion: ≤5%

Receiver

  • Audio distortion: ≤5%
  • Audio power output: ≤500 mW
  • Sensitivity (12dB SINAD): 0.25 µV
  • Audio response:: Wide: 0.3-3 KHz +1 to -3 dB / Narrow: 0.3-2.55 KHz +1 to -3 dB
  • Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB
  • Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
  • Signal to noise ratio: Wide: ≤45 dB / Narrow: ≤40 dB
  • Spurious radiation: Wide: ≤70 dB / Narrow: ≤70 dB

Fysieke eigenschappen

  • Length: 61.49 mm
  • Height: 124.5 mm
  • Width: 33.88
  • Weight: 490 gram
  • Antenna connector: SMA male

In de verpakking

  • Transceiver: Yes
  • Battery: Li-Ion 1700 mAh
  • Charger: Desk charger with adapter and 12 V car charger
  • Antenna: Yes
  • Installation manual: English
  • Belt clip: Yes
  • Hand strap: Yes
