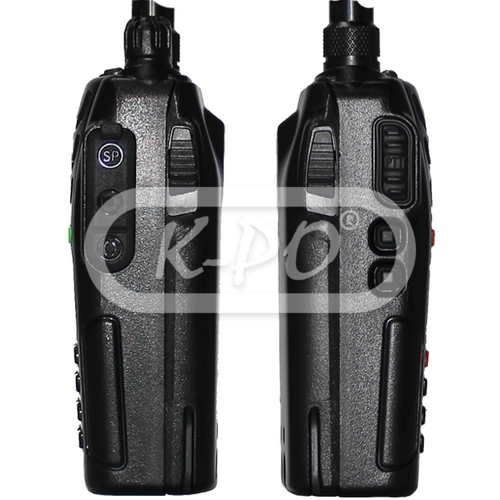

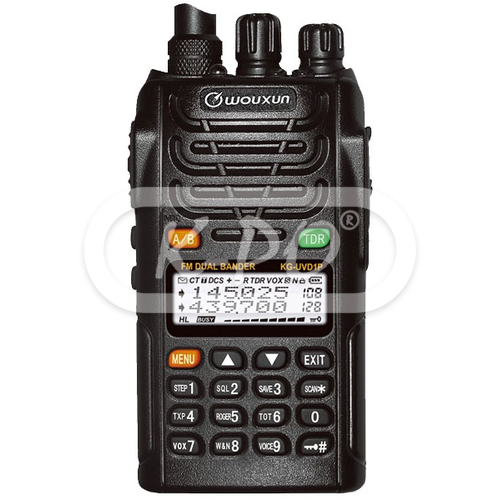

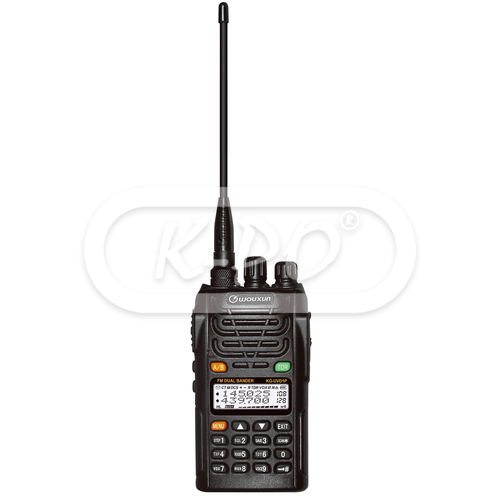

Wouxun - KG-UVD1P Wouxun - KG-UVD1P Wouxun - KG-UVD1P

Wouxun - KG-UVD1P

Artikelnummer: 34771
Barcode: 6946351703327

The Wouxun KG-UVD1P is a dual band transceiver suitable for 144-146 / 430-440 MHz. The KG-UVD1P will be delivered with a 1700 mAh Li-Ion battery pack.

Frequentie bereik: RX/TX: 144-146 / 430-440 MHz, RX: 76-108 MHz (FM)
Vandaag verstuurd - Stock: 2
€ 129,95 (107.4 excl. 21% BTW)

Features

  • Display: Yes, LCD
  • VOX function: Yes
  • DTMF: Yes
  • Emergency (SOS) function: Yes
  • Flashlight: Yes
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • Voice guide: English and Chinese
  • Working mode: U-V,V-U,V-V,U-U can be set freely
  • Band: VHF TX-UHF RX or UHF TX-VHF RX can be set freely
  • Burst tone: Yes, at 1750Hz
  • DCS codes: 105 groups
  • CTCSS codes: 50 groups
  • FM Radio: Yes
  • Program: Yes, by computer

Elektrische eigenschappen

  • Frequency step: 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 128
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -30℃ to +60℃

Transmitter

  • Power output (Watts): VHF: 5 Watts / UHF: 4 Watts
  • Modulation limit: F3E(FM)
  • Frequency stability: ±2.5 PPM
  • Effective radiation power (ERP): within pre-determined value ±7.5 dB
  • Max. frequency deviation: Channel space: 12.5 KHz ±2.5 KHz / 25KHz ±5 KHz
  • Audio modulation: +3 dB (pre-emphasis by 6 dB between 0.3-3 KHz)
  • Adjacent channel power: Channel space: 12.5 KHz ≥60 dB / 25 KHz ≥70 dB
  • Spurious radiation: ≤-30 dB
  • Inter modulation attenuation: ≥40 dB
  • Modulation distortion: ≤10%
  • Residual FM: ≤-35 dB
  • Residual AM: ≤3%

Receiver

  • Sensitivity (12dB SINAD): 0.16 µV
  • Squelch rejection sensitivity: ≤0.8 µV
  • Squelch sensitivity: ≤0.2 µV
  • Audio output power: ≤500 mW
  • Audio distortion: ≤5%
  • Audio response: 300-3000 Hz +1 to -3 dB
  • Co-channel rejection: ≥-8.0 dB
  • Performance of amplitude limiter: ≤3
  • Adjacent channel selection: Channel space: 25KHz ≥70 dB / 12.5KHz ≥60 dB
  • Inter modulation: ≥65 dB
  • Resistance: ≥84 dB
  • Spurious radiation: 9 KHz-1 GHz≤-57 dBm / 1 GHz-4 GHz≤-47dBm

Fysieke eigenschappen

  • Length: 58 mm
  • Height: 105 mm
  • Width: 39 mm
  • Weight: 250 gram
  • Antenna connector: SMA male

In de verpakking

  • Transceiver: Yes
  • Battery: Li-Ion 1700 mAh
  • Charger: Desk charger with adapter and 12 V car charger
  • Antenna: Yes
  • Installation manual: English
  • Belt clip: Yes
  • Hand strap: Yes
