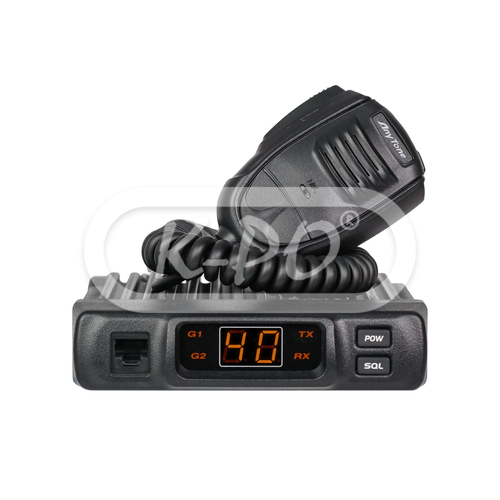

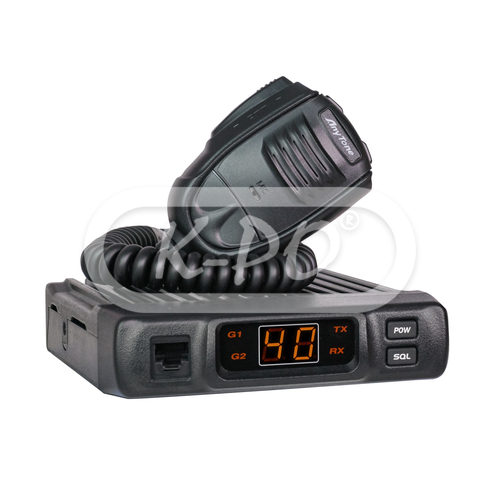

AnyTone - AT-888 VHF

Artikelnummer: 34885

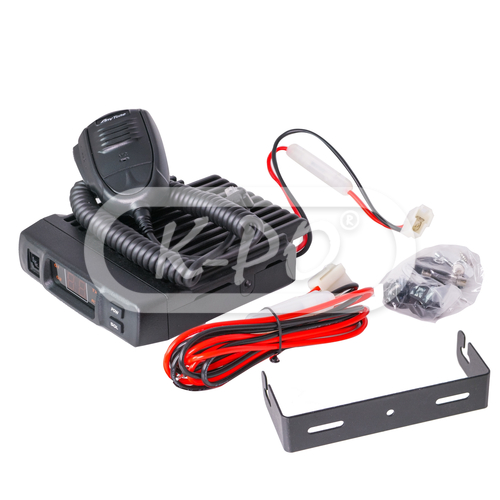

The Anytone AT-888 VHF is a mobile transceiver and is suitable for 136-174 MHz. The AT-888 VHF will be deliverd complete with microphone and mounting bracket.

Frequentie bereik: RX/TX: 136-174 MHz

Niet op voorraad - Levertijd in overleg

€ 169,94 (140.45 excl. 21% BTW)

Features

• Display: Yes with backlight
• DTMF: Yes
• 2-tone/5-tone: Yes
• Priority channel scan: Yes
• High/low power selection: Yes
• Carrier: Yes
• DCS: Yes
• CTCSS: Yes
• Program: Yes, by computer

Elektrische eigenschappen

• Frequency step: 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
• Channels: 200
• Wide and narrow bandwidth selection: Yes
• Operating temperature: -20℃ to +60℃
• Channel spacing: Wide: 25 kHz / Narrow: 12.5 kHz

Transmitter

• Power output (Watts): VHF: 60/25/10 Watts
• Adjacent channel power: Wide: ≥70 dB / Narrow: ≥70 dB
• Spurious Emission: Wide: ≥60 dB / Narrow: ≥60 dB
• Audio distortion: ≤5%
• Frequency stability: ±2.5 PPM
• Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
• Hum & noise: Wide: ≥40 dB / Narrow: ≥36 dB
• Audio response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-2.55 kHz +1 to -3 dB

Receiver

• Spurious rejection: Wide: ≥70 dB / Narrow: ≥70 dB
• Hum & noise: Wide: ≥45 dB / Narrow: ≥40 dB
• Audio distortion: ≤5%
• Audio power output: 2 Watts @10%
• Sensitivity (12 dB Sinad): Wide: ≤0.25 μV / Narrow: ≤0.35 μV
• Adjacent channel selectivity: Wide: ≥70 dB / Narrow: ≥60 dB
• Intermodulation: Wide: ≥65 dB / Narrow: ≥60 dB
• Audio Response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-2.55 kHz +1 to -3 dB

Fysieke eigenschappen

• Length: 140 mm
• Height: 33 mm
• Width: 165 mm
• Weight: 760 gram
• Antenna connector: PL 259 (UHF) female

In de verpakking

• Transceiver: Yes
• Microphone: Yes
• Mounting bracket: Yes
• Installation manual: English
• DC cable: Yes

Downloads

• Informatieblad: ANYTONE AT 888 VHF WM
