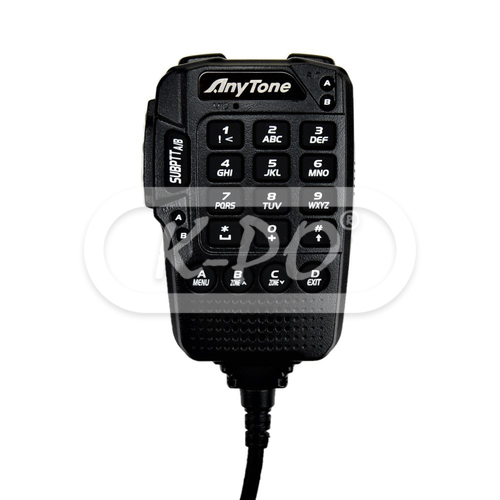

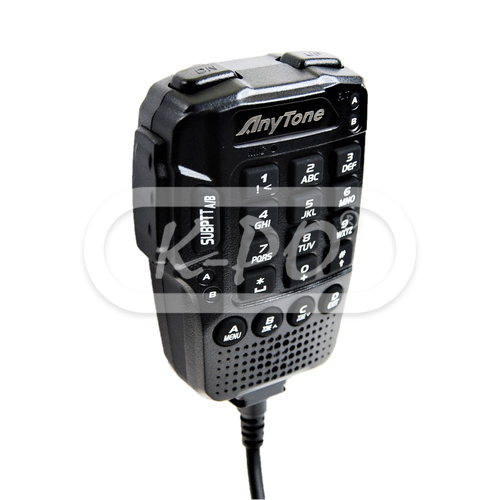

AnyTone - SM-0153 mike

Artikelnummer: 30579

The AnyTone SM-0153 microphone handheld microphone is an original AnyTone microphone and is suitable for the AT-D578UV series.

Vandaag verstuurd - Stock: 4

€ 29,95 (24.75 excl. 21% BTW)

Features

• Suitable for: AnyTone AT-D578UV
• Up down: Yes
• Lock button: Yes
• A/B Sub PTT: Yes
• A/B channel RX/TX indicator: Yes

Fysieke eigenschappen

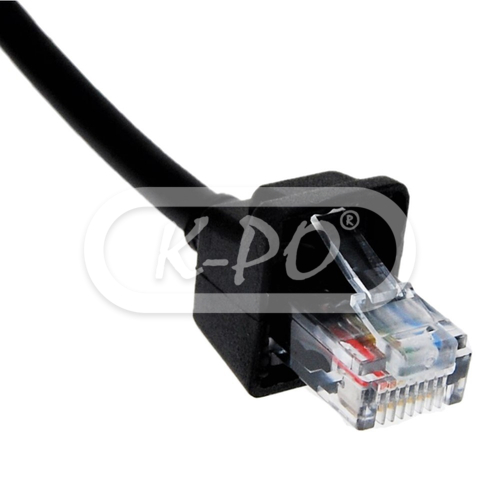

• Microphone connector: RJ45

Microphone wiring

• Receive: Pin 1
• Transmit: Pin 3
• Ground: Pin 8
• 5V: Pin 2
• SP +: Pin 4
• SP -: Pin 7
• MIC GND: Pin 5
• MIC: Pin 6
