Astatic - 636L Carbon P4

Artikelnummer: 1722

Fabrieksnummer: 302636LCF

Barcode: 045464803187

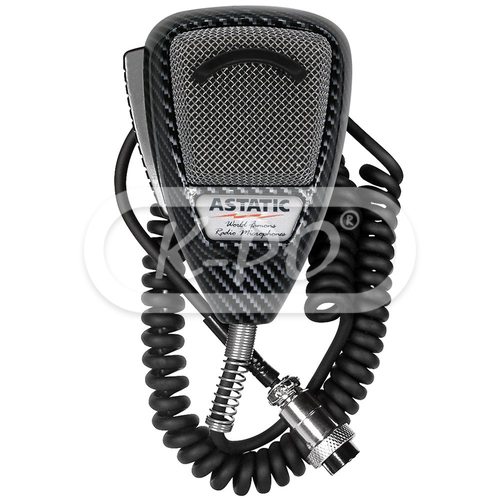

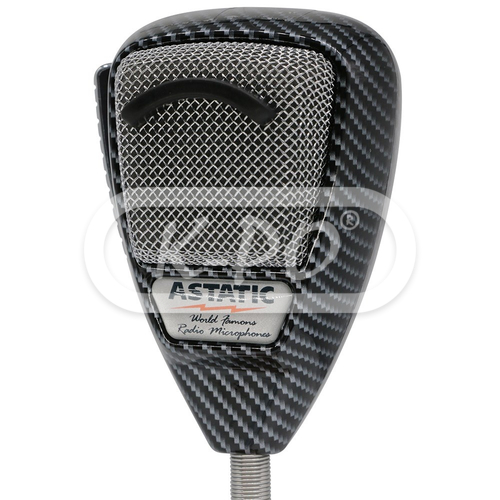

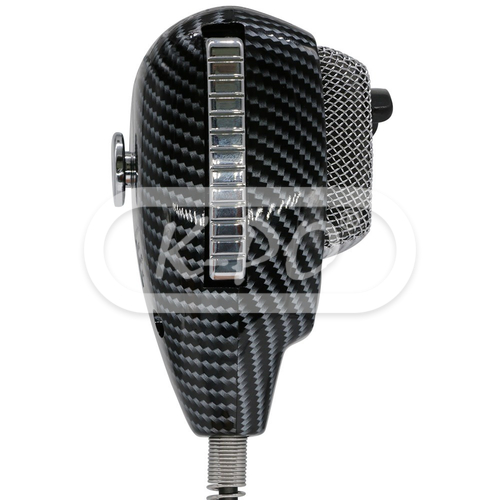

The 636L Carbon design handheld microphone is an original Astatic microphone. The microphone features a carbon design look and a rugged housing with polyurethane coated steel grille screen, coiled cord and 4-pin connection. The 636L is designed for close talking handheld applications with CB,amateur radio and SSB communications.

Vandaag verstuurd

€ 54,95 (45.41 excl. 21% BTW)

Features

• Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President Valery Classic / President Wilson /

Elektrische eigenschappen

• Frequency response: 100 - 5000 Hz
• Output level: -58 dB (0 dB=1 mw/10 microbars) -76 dB (0 dB=1 volt/microbar)
• Impedance: 200 Ohm

Fysieke eigenschappen

• Cable Length: 2.3 meter
• Microphone connector: 4-pin
• Cable: Six wire, five conductors, one conductor shielded, coil cord with durable strain relief
• Housing: Durable molded carbon look ABS Cycolac®

Microphone wiring

• Receive: Pin 4
• Transmit: Pin 3
• Mic Audio: Pin 2
• Ground: Pin 1
