Astatic - 636L P4

Artikelnummer: 1592

Fabrieksnummer: 302-10001

Barcode: 631922100013

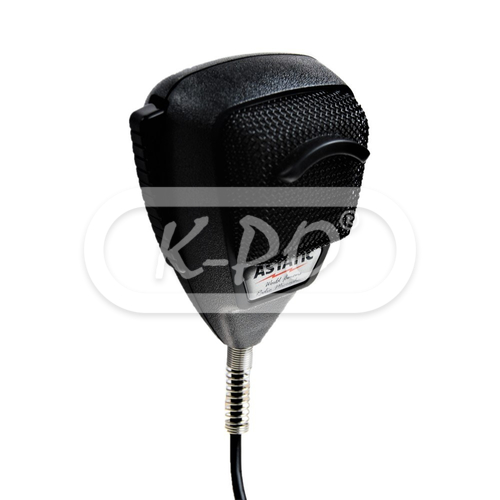

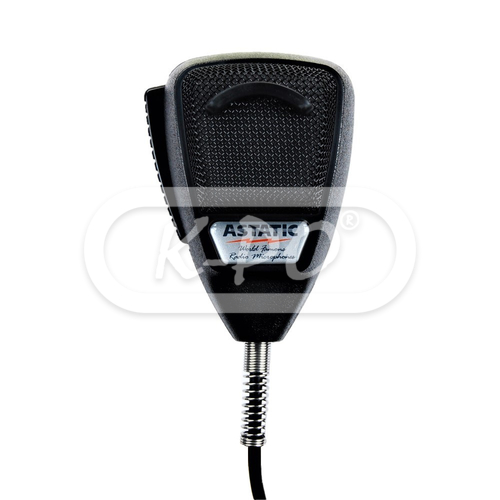

The 636L P4 handheld microphone is an original Astatic microphone. The microphone features a rugged housing with polyurethane coated steel grille screen, coiled cord and 4-pin connection. The 636L is designed for close talking handheld applications with CB,amateur radio and SSB communications.

Vandaag verstuurd

€ 44,95 (37.15 excl. 21% BTW)

Features

• Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President Valery Classic / President Wilson /

Elektrische eigenschappen

• Frequency response: 100 - 5000 Hz
• Output level: -58 dB (0 dB=1 mw/10 microbars) -76 dB (0 dB=1 volt/microbar)
• Impedance: 200 Ohm

Fysieke eigenschappen

• Cable Length: 2.3 meter

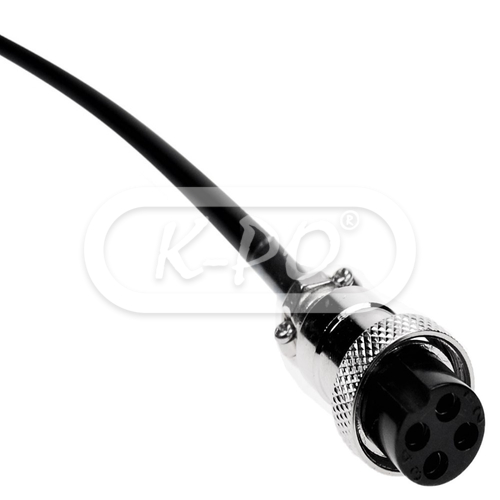

• Microphone connector: 4-pin
• Cable: Six wire, five conductors, one conductor shielded, coil cord with durable strain relief
• Housing: Durable molded black ABS Cycolac®

Microphone wiring

• Receive: Pin 4
• Transmit: Pin 3
• Mic Audio: Pin 2
• Ground: Pin 1
