Astatic - 636L Stars n' Stripes P6

Artikelnummer: 915012

Fabrieksnummer: 302-10309

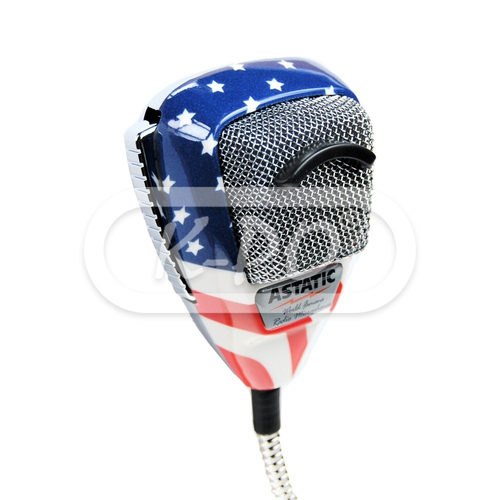

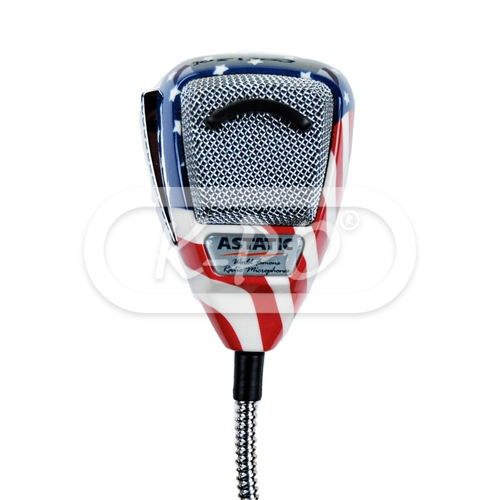

The Astatic 636L Stars n' Stripes handheld microphone is an original Astatic microphone. The microphone 6-Pin CB Microphone is the ultimate noise canceling CB microphone. The 636L Stars n' Stripes boasts heavy duty construction, grille screen, and a smooth operating, long life switch with spring return. Select models also feature a stainless steel cord. The 636L Stars n' Stripes is stylish and sleek making it the perfect noise canceling microphone for CB, Amateur radio, and SSB communications..

Vandaag verstuurd - Stock: 2

€ 59,96 (49.55 excl. 21% BTW)

Features

• Suitable for: 6-pin standard connector / Midland Alan 48 Excel / Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Grant II ASC / President Harry ASC / President Harry II ASC / President Harry III ASC / President Henry ASC / President Jackson II / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson II / President Johnson II VOX / President Lincoln II ASC / President Lincoln II + / President Martin ASC / President MC Kinley / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Richard / President Ronald / President Walker / President Walker II ASC /

Elektrische eigenschappen

• Frequency response: 100 - 5000 Hz
• Output level: -58 dB (0 dB=1 mw/10 microbars) -76 dB (0 dB=1 volt/microbar)
• Sensitivity: 400 Ohm

Fysieke eigenschappen

• Cable Length: 2.3 meter

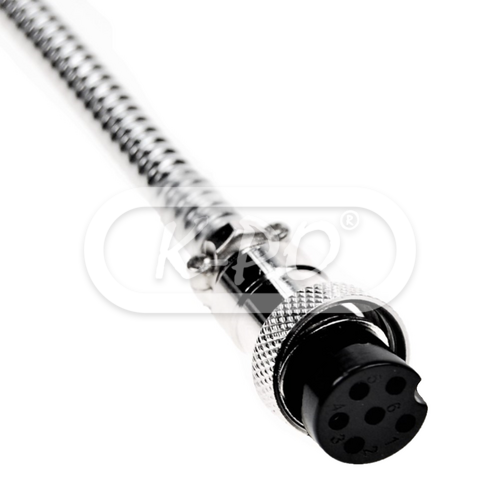

• Microphone connector: 6-pin
• Cable: Chrome cable with six wire, five conductors, one conductor shielded, coil cord with durable strain relief

Microphone wiring

• Receive: Pin 2
• Transmit: Pin 3
• Mic Audio: Pin 1
• Ground: Pin 5
