Astatic - 878DM P4

Artikelnummer: 878

Fabrieksnummer: 302-AST878DM

Barcode: 631922103564

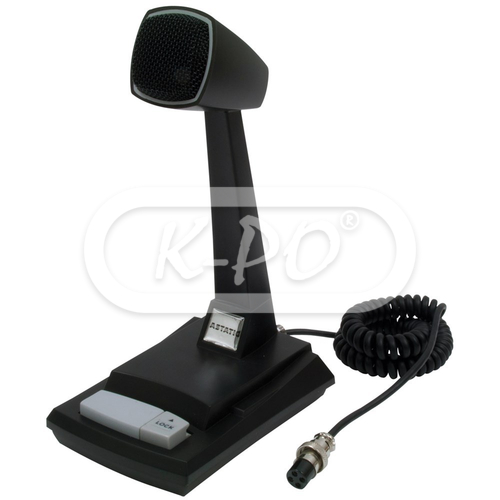

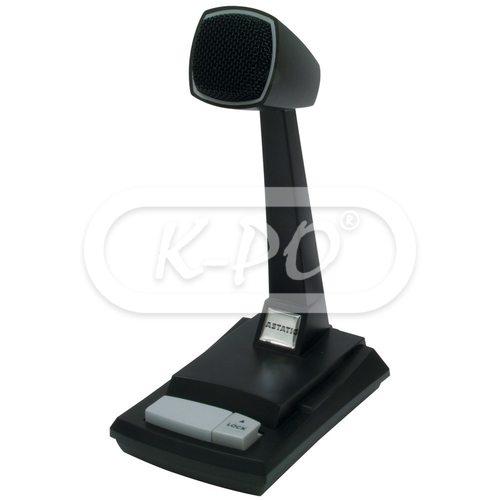

This desktop CB microphone features rugged cycolac resin housing and standard push-to-talk and lock-to-talk buttons. A high-quality omni directional ceramic cartridge and 5 conductor shielded standard astatic color-coded cable with 4-pin connector. Used for industrial and commercial applications.

Niet op voorraad - Levertijd in overleg

€ 99,95 (82.6 excl. 21% BTW)

Features

• Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK II / President Valery Classic / President Wilson /
• Lock button: Yes
• Push to talk: Yes

Elektrische eigenschappen

• Frequency response: 100 - 10.000 Hz
• Output level: -44 dB below 1 Volt microbar at 1 kHz
• Impedance: 5000 Ohm
• Output adjustment: Approx 40 dB range

Fysieke eigenschappen

• Cable Length: 60 cm

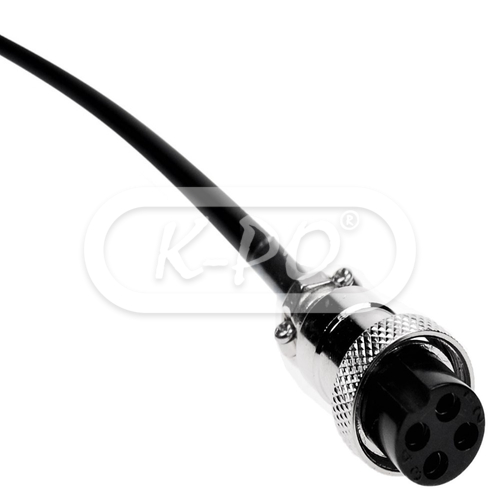

• Microphone connector: 4-pin
• Weight: 550 gram
• Battery: 9 Volt battery 6LR61 (not included)
• Housing: Durable molded black cycolac

Microphone wiring

• Receive: Pin 4
• Transmit: Pin 3
• Mic Audio: Pin 2
• Ground: Pin 1
