Astatic - D104M6B P4

Artikelnummer: 1719

Fabrieksnummer: 302-10005

Barcode: 631922100051

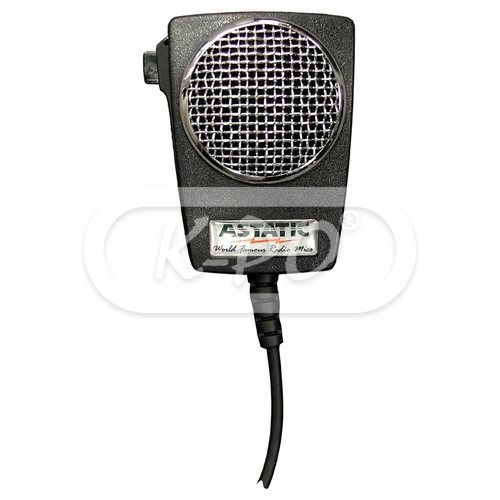

This amplified ceramic power microphone is a handheld version of classic D104 desk microphone. Designed for harsh mobile environments, it includes a transistor amplifier and external gain control.

Niet op voorraad - Levertijd in overleg

€ 54,95 (45.41 excl. 21% BTW)

Features

• Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK II / President Valery Classic / President Wilson /
• Volume control: Yes

Elektrische eigenschappen

• Frequency response: 100 - 10.000 Hz
• Output level: -44 dB below 1 Volt microbar at 1 kHz
• Impedance: 5000 Ohm
• Output adjustment: Approx 40 dB range

Fysieke eigenschappen

• Cable Length: 2.2 meter

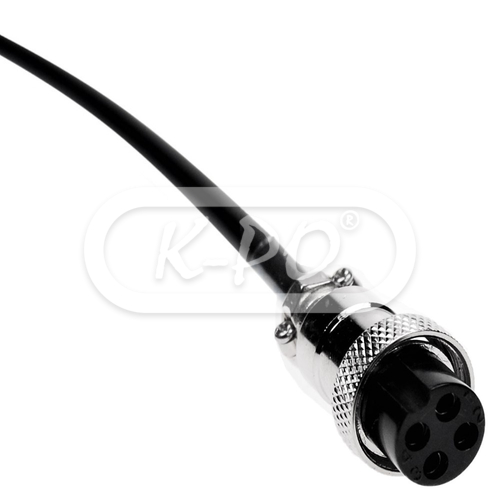

• Microphone connector: 4-pin
• Battery: 9 Volt battery 6LR61 (not included)
• Weight: 125 gram
• Housing: Durable molded black ABS Cycolac

Microphone wiring

• Receive: Pin 4
• Transmit: Pin 3
• Mic Audio: Pin 2
• Ground: Pin 1
