Astatic - D104M6B P6

Artikelnummer: 1721

Fabrieksnummer: 302-10005

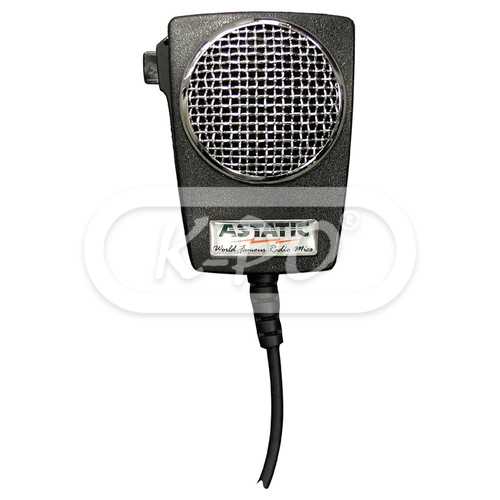

This amplified ceramic power microphone is a handheld version of classic D104 desk microphone. Designed for harsh mobile environments, it includes a transistor amplifier and external gain control.

Vandaag verstuurd - Stock: 2

€ 69,95 (57.81 excl. 21% BTW)

Features

• Suitable for: 6-pin standard connector / Midland Alan 48 Excel / Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Grant II ASC / President Harry ASC / President Harry II ASC / President Harry III ASC / President Henry ASC / President Jackson II / President JFK II / President Jimmy II ASC / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson II / President Johnson II VOX / President Lincoln II ASC / President Lincoln II + / President Martin ASC / President MC Kinley / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Richard / President Ronald / President Walker / President Walker II ASC /

Elektrische eigenschappen

• Frequency response: 100 - 10.000 Hz
• Output level: -44 dB below 1 Volt microbar at 1 kHz
• Impedance: 5000 Ohm
• Output adjustment: Approx 40 dB range

Fysieke eigenschappen

• Cable Length: 2.2 meter

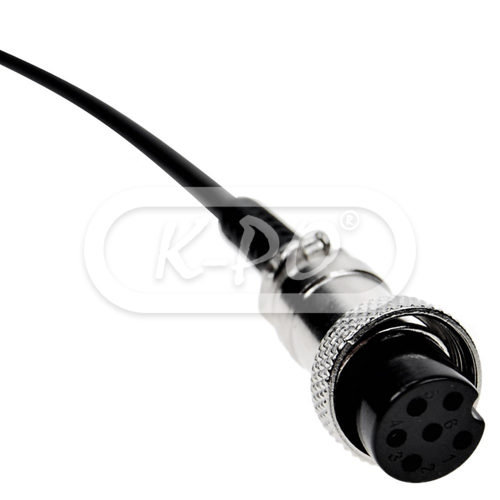

• Microphone connector: 6-pin
• Battery: 9 Volt battery 6LR61 (not included)
• Weight: 125 gram
• Housing: Durable molded black ABS Cycolac

Microphone wiring

• Receive: Pin 2
• Transmit: Pin 3
• Mic Audio: Pin 1
• Ground: Pin 5
