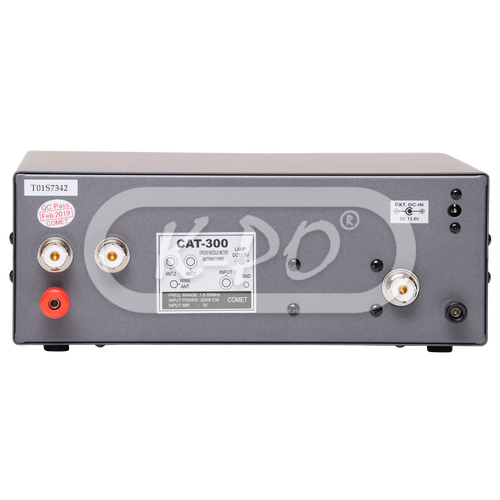

Comet - CAT-300

Artikelnummer: 805300

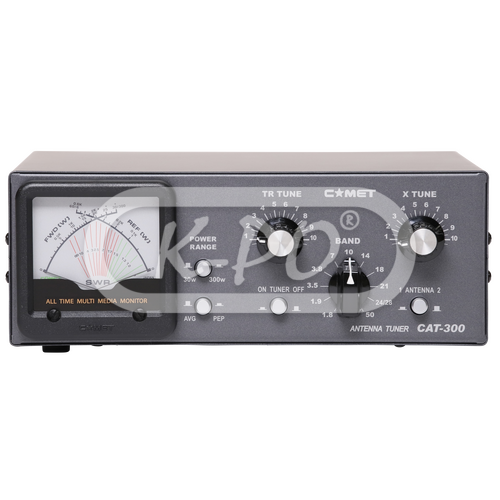

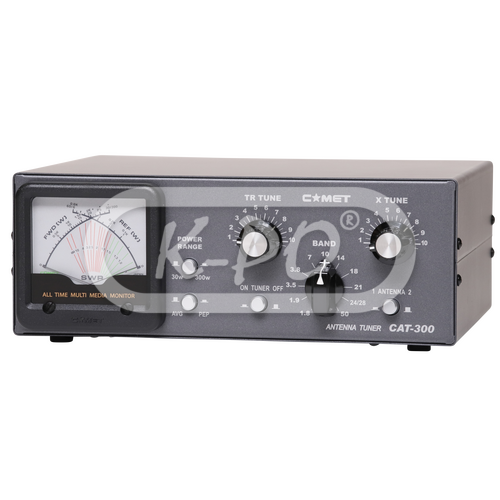

The Comet CAT-300 is a popular antenna tuner for HF frequencies between 1.8 - 60 MHz. With a maximum pass-band power handling of 300 Watts (SSB / PEP). Also for measuring your SWR and output power. The cross needle meter measures Forward Power, Reflected Power and SWR simultaneously. AVG / PEP switch to select average power or SSB / PEP. You can connect two antennas to the Comet CAT-300. With the 'antenna' switch on the front you can select the antenna that you want to use. The cross needle meter is illuminated by 13.8V DC.

Frequentie bereik: 1.8 - 60 MHz

Vandaag verstuurd

€ 319,95 (264.42 excl. 21% BTW)

Elektrische eigenschappen

• Backlight display / meter: Yes
• Power range: 30 / 300 Watts (SSB / PEP)
• Minimum Power for SWR: 6 Watts
• Testing function: SWR and Power (FWD and REF / AVG and PEP)
• Voltage: 13.8 Volt, for display lightning only
• Power supply for display lightning: Yes
• Input impedance: 50 Ohm
• Output impedance: 10 - 600 Ohm
• Pass-band power rating: Below 300 Watts (SSB / PEP)

Fysieke eigenschappen

• Input connector: UHF (PL) female
• Output connector: 2x UHF (PL) female
• Length: 200 mm
• Height: 93 mm
• Width: 250 mm
• Weight: 2700 gram

In de verpakking

• Tuner: Yes
• DC power cable: Yes
• Installation manual: English

Downloads

• Informatieblad: COMET CAT300
