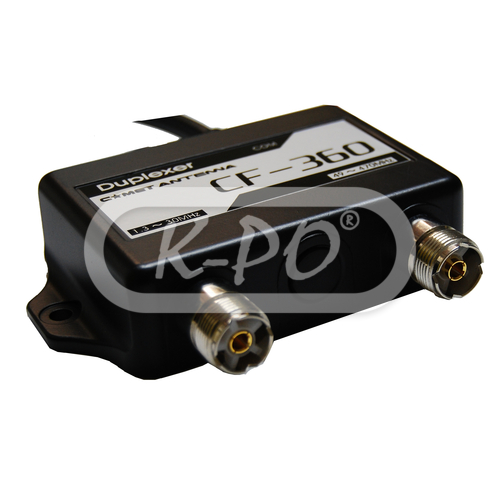

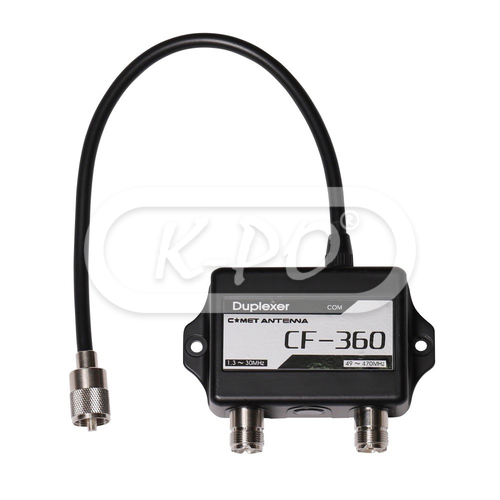

Comet - CF-360B

Artikelnummer: 805360

Barcode: 4932273180089

Model CF-360B is the duplexer for transmitting/receiving all 2 bands of HF-band (30 MHz) and VHF&UHF (50MHz,144-430 MHz) at the same time. Using one,or two CF-360,you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CF-360 work to prevent occurrence of TVI on the othe hand. (Isolation of each connectors are over 45 dB.) When using CF-360 for one frequency, the other connectors can be remain as [open) ,but additional dummy load will be much better.

Frequentie bereik: 1.3-30 MHz / 49-470 MHz

Vandaag verstuurd - Stock: 8

€ 77,95 (64.42 excl. 21% BTW)

Elektrische eigenschappen

• Power peak: 1.3-30 MHz: 600W (PEP) / 49-250 MHz: 600W (PEP) / 300-470 MHz: 500W (PEP)
• VSWR: 1.2 or less
• Impedance: 50 Ohm
• Insertion loss: 1.3-30 MHz: 0.2 dB or less / 49-470 MHz 0.25 dB or less
• Isolation: more than 45 dB

Fysieke eigenschappen

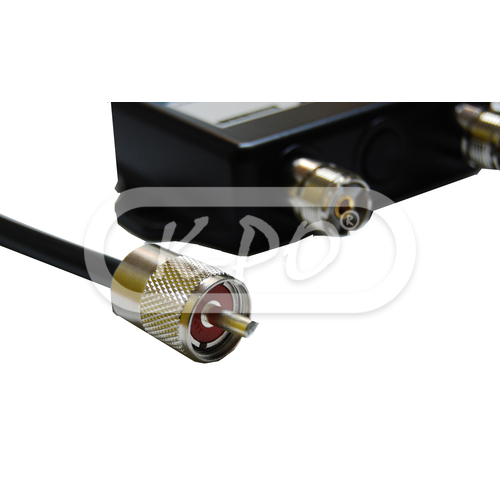

• Connector(s) type in: UHF (PL) male
• Connector(s) type out: 1.3-30 MHz: UHF (PL) female / 49-470 MHz: UHF (PL) female /
• Length: 66 mm
• Height: 26 mm
• Width: 90 mm
• Weight: 325 gram

Downloads

• Informatieblad: CF 360 B watermarked
