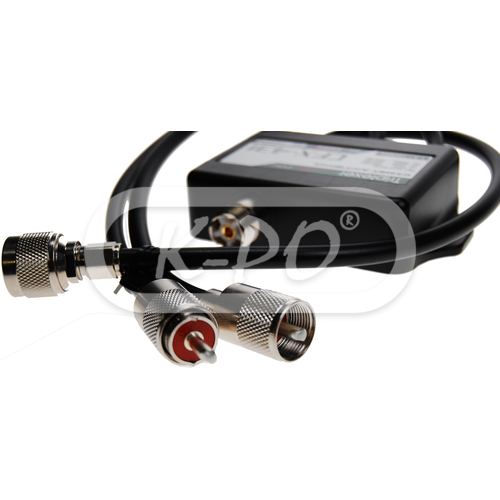

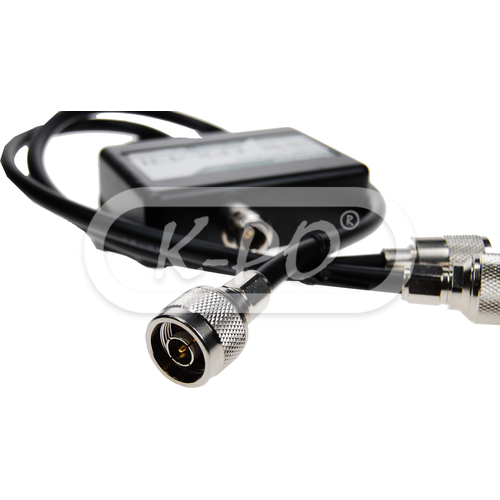

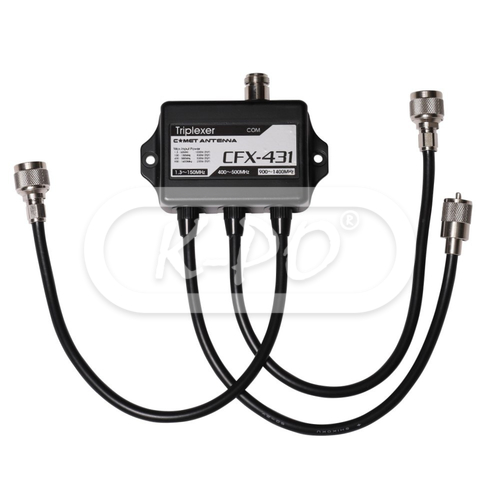

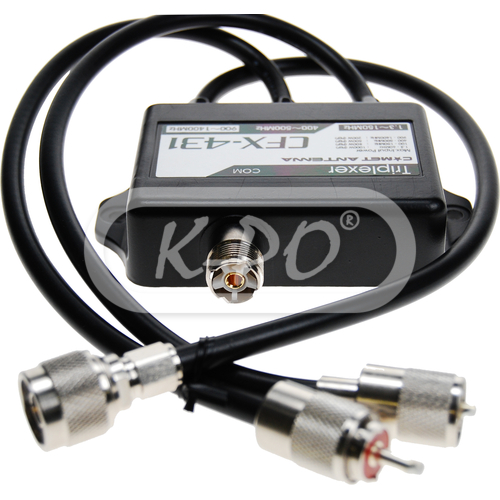

Comet - CFX-431D

Artikelnummer: 805431

Model CFX-431D is the triplexer for transmitting/receiving all 3 bands of HF-150 MHz, 400 MHz band and 900 MHz band at the same time. Using one, or two CFX-431D you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CFX-431D work to prevent occurrence of TVI on the other hand (isolation of each connectors are over 50 dB). When using CFX-431D for one frequency, the other connectors can be remain as (open), but additional dummy load will be much better.

Frequentie bereik: 1.3-150 MHz / 400-500 MHz / 900-1400 MHz

Vandaag verstuurd

€ 109,95 (90.87 excl. 21% BTW)

Elektrische eigenschappen

• Power peak: 1.3-60 MHz: 1000W (PEP) / 100-150 MHz: 800W (PEP) / 400-500 MHz: 500W (PEP) / 900-1400 MHz: 200W (PEP)
• VSWR: 1.2 or less
• Impedance: 50 Ohm
• Insertion loss: 1.3-90 MHz: 0.2 dB or less / 400-500 MHz: 0.3 dB or less / 900-1400 MHz: 0.4 dB or less
• Isolation: more than 50 dB

Fysieke eigenschappen

• Connector(s) type in: UHF (PL) female
• Connector(s) type out: 1.3-150 MHz: UHF (PL) male / 900-1400 MHz: N male / 400-500 MHz: UHF (PL) male /
• Length: 66 mm
• Height: 26 mm
• Width: 90 mm
• Weight: 325 gram
