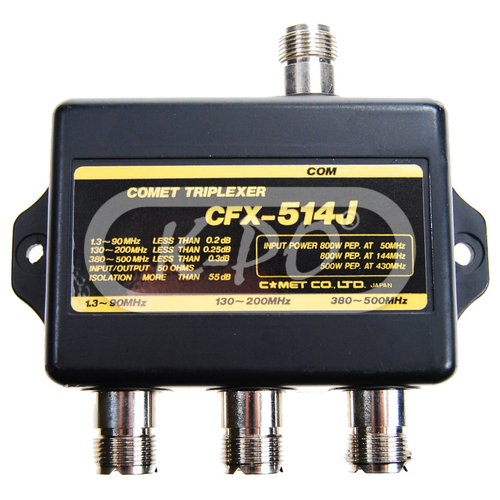

Comet - CFX-514J

Artikelnummer: 805720

Barcode: 4932273007621

Model CFX-514J is the triplexer for transmitting/receiving all 3 bands of HF-90 MHz, 2m band and 70cm band at the same time. Using one, or two CF-514J, you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CFX-514J work to prevent occurrence of tvi on the other hand (isolation of each connectors are over 55 dB). When using CFX-514J for one frequency, the other connectors can be remain as (open), but additional dummy load will be much better.

Frequentie bereik: 1.3-90 MHz / 130-200 MHz / 380-500 MHz

Niet op voorraad - Levertijd in overleg

€ 94,95 (78.47 excl. 21% BTW)

Elektrische eigenschappen

• Power peak: 1.3-90 MHz: 800W (PEP) / 130-200 MHz: 800W (PEP) / 380-500 MHz: 500W (PEP)
• VSWR: 1.2 or less
• Impedance: 50 Ohm
• Insertion loss: 1.3-90 MHz: 0.15 dB or less / 130-200 MHz: 0.2 dB or less / 380-500 MHz: 0.25 dB or less
• Isolation: more than 55 dB

Fysieke eigenschappen

• Connector(s) type in: UHF (PL) female
• Connector(s) type out: 1.3-90 MHz: UHF (PL) female / 130-200 MHz: UHF (PL) female / 380-500 MHz: UHF (PL) female /
• Length: 66 mm
• Height: 26 mm
• Width: 90 mm
• Weight: 325 gram
