Comet - CMX-400

Artikelnummer: 805400

Barcode: 4932273180874

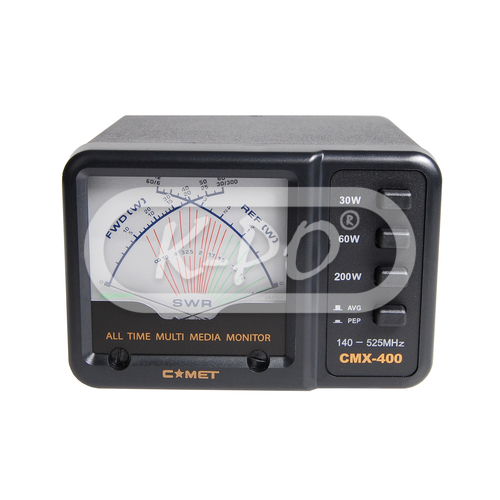

The Comet CMX-400 is a high quality cross needle meter that can be used for 140 - 525 MHz, to measure Forward Power, Reflected Power and SWR. With a maximum PEP power handling of 200 Watts. PEP switch to select average power or SSB / PEP. The Comet CMX-200 has a large and illuminated display. Gold-plated inner core connectors.

Frequentie bereik: 140 - 525 MHz

Niet op voorraad - Levertijd in overleg

€ 159,95 (132.19 excl. 21% BTW)

Elektrische eigenschappen

• Backlight display / meter: Yes
• Impedance: 50 Ohm
• Power range: 30 / 60 / 200 Watts
• Accuracy: ±10%
• Minimum Power for SWR: 6 Watts
• Insertion loss: 0.2 dB
• Testing function: SWR and Power (FWD and REF / AVG and PEP)
• Voltage: 13.8 Volt, for display lightning only
• Maximum continuous power handling 140 - 220 MHz: 150 Watts
• Maximum continuous power handling above 400 MHz: 120 Watts

Fysieke eigenschappen

• Input connector: UHF (PL) female, gold-plated inner core
• Output connector: UHF (PL) female, gold-plated inner core
• Length: 120 mm
• Height: 80 mm
• Width: 105 mm
• Weight: 623 gram

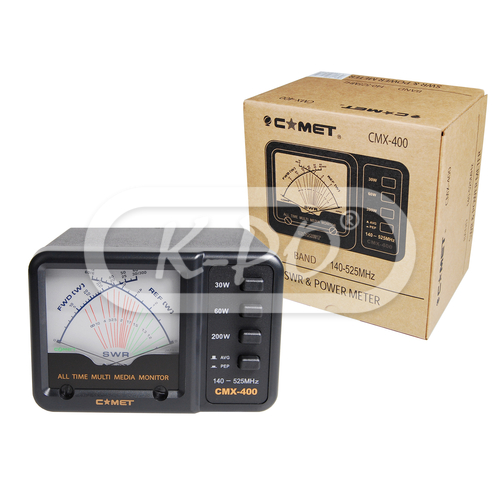

In de verpakking

• Meter: Yes
• DC power cable: Yes
• Installation manual: English
