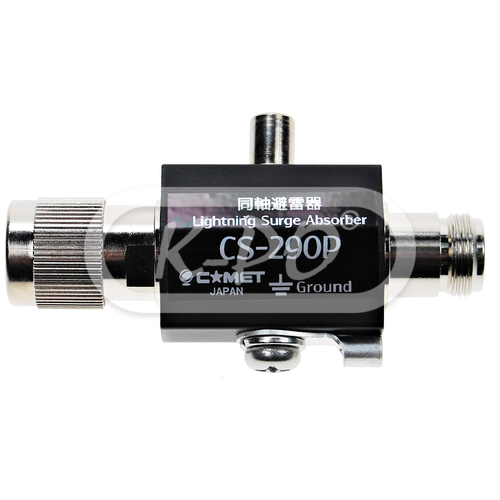

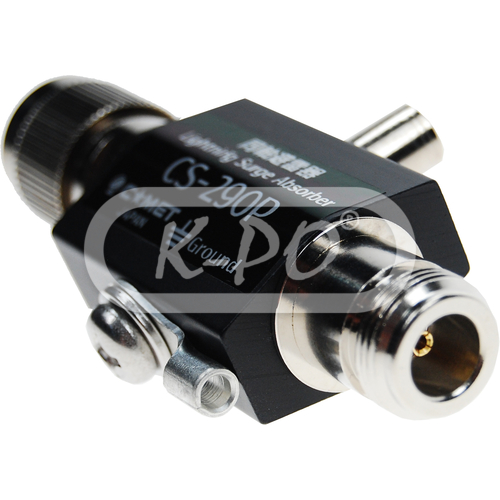

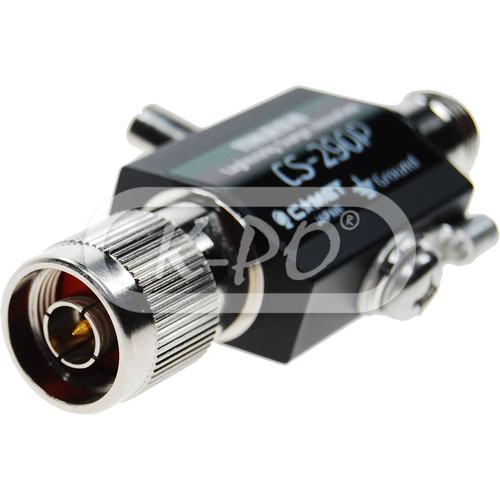

Comet - CS-290P

Artikelnummer: 806290

The Comet surge protector is to protect your transceivers and/or receivers from excessive high ampere currency occurred by thunder surge, provided by the sufficient grounding to the earth.

Frequentie bereik: Up to 1500 MHz

Vandaag verstuurd

€ 35,95 (29.71 excl. 21% BTW)

Elektrische eigenschappen

• Power peak: 300 Watts
• VSWR: 1.1 or less
• Impedance: 50 Ohm
• Insertion loss: 0.1 dB or less
• Isolation: DC 100 V: more than 10.000 Ohm
• Min. radiation voltage: DC290 V (+/-15%)
• Min. shock wave voltage: 1000 V
• Min. shock wave amp.: 6000 A
• Min. shock wave repetition 500 times: DC290 V (+/-20%)

Fysieke eigenschappen

• Connector(s) type in: N male
• Connector(s) type out: N female
• Length: 86 mm
• Height: 41 mm
• Width: 20 mm
• Weight: 130 gram
