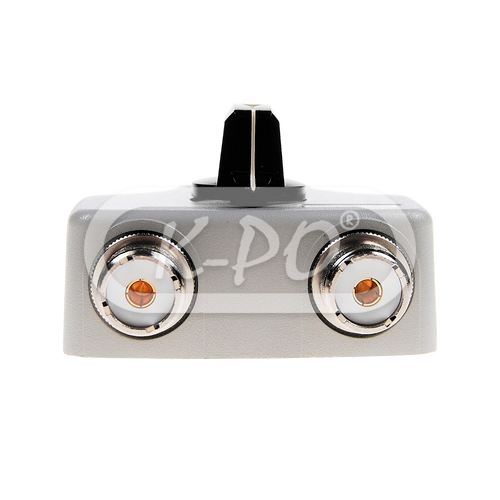

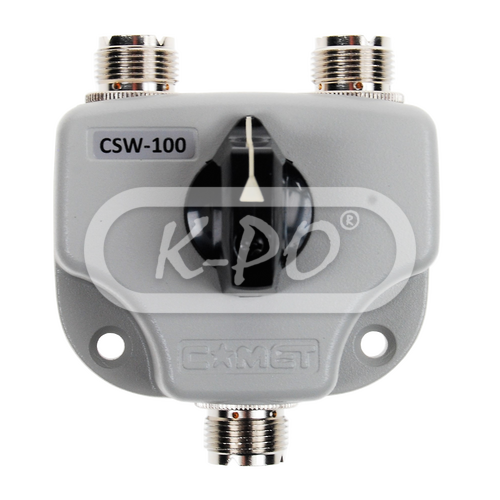

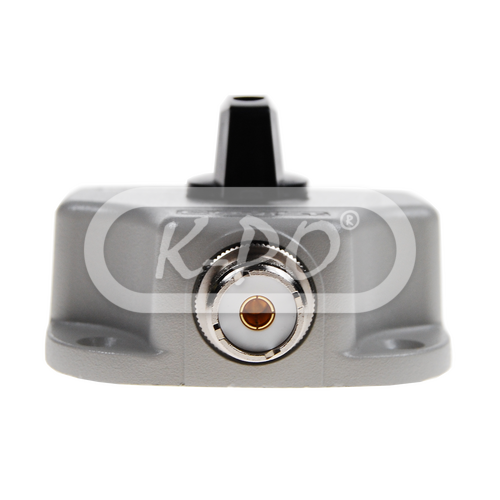

Comet - CSW-100 (PL)

Artikelnummer: 805201

Barcode: 4932273181192

The Comet CSW-100 UHF (PL) is a 2 way antenna switch with a UHF (PL) female input connector and 2x UHF (PL) female output connectors.

Frequentie bereik: Up to 500 MHz

Vandaag verstuurd

€ 53,95 (44.59 excl. 21% BTW)

Elektrische eigenschappen

• Power continues: DC-30 MHz: 1500 Watts (PEP) / 30-170 MHz: 1000 Watts (PEP) / 170-500 MHz: 500 Watts (PEP)
• VSWR: less then 1.2
• Impedance: 50 Ohm
• Isolation: 0-170 MHz over 60 dB / 170-500 MHz over 35 dB

Fysieke eigenschappen

• Connector(s) type in: UHF (PL) female
• Connector(s) type out: UHF (PL) female
• Length: 78 mm
• Height: 47 mm
• Width: 72mm
• Weight: 430
