Comet - MA-721

Artikelnummer: 805721

Barcode: 4932273104498

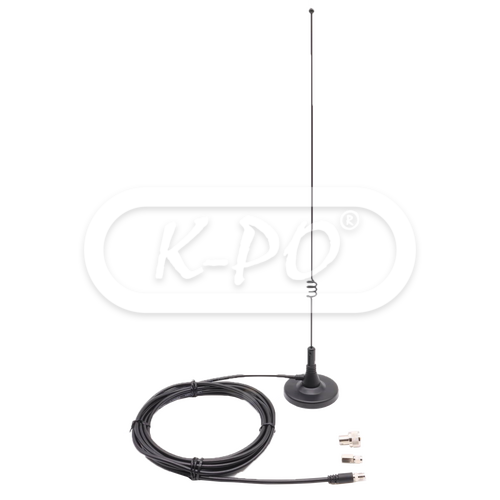

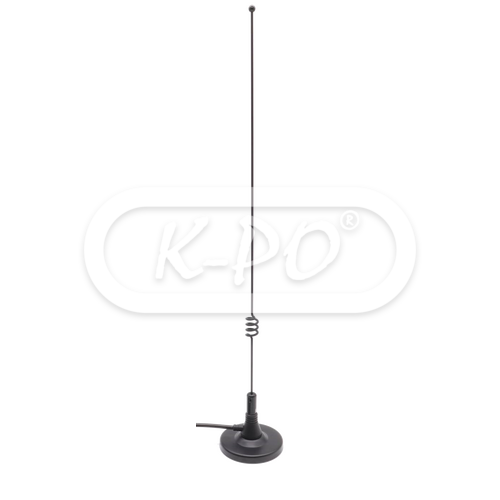

New magnet mount antenna for 144/430 MHz with FME-male connector on the cable end. Including FME male to BNC male / SMA-male / UHF-male connectors.

Frequentie bereik: 144 / 430 MHz

Volgende werkdag verstuurd

€ 56,94 (47.06 excl. 21% BTW)

Elektrische eigenschappen

• Gain: 144 MHz: 1.7 dBi / 430 MHz: 4.15 dBi
• VSWR: 1.5 or less
• Bandwidth: 100 - 170 MHz / 350 - 470 MHz
• Power peak: 80 Watts (FM)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter

Fysieke eigenschappen

• Height: 490 mm
• Weight: 500 gram
• Mounting type: 77 mm magnet
• Antenna connector: FME female
• Cable: Durable coaxial cable, RG 58 MIL-C-17 type

In de verpakking

• Antenna: Yes
• Radio connector: Adapters FME male to SMA male / BNC male / UHF male
• Antenna cable: Yes
• Installation manual: English

Downloads

• Informatieblad: MA 721 ver1 jpn eng
