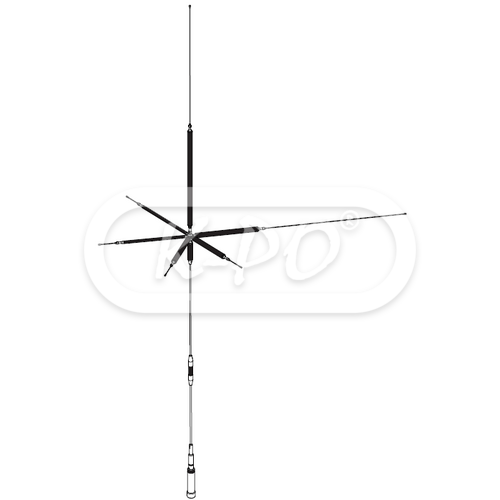

Comet - UHV-9

Artikelnummer: 806009

The Comet UHV-9 is a new 9 band vertical HF mobile antenna from Comet for use with 3.5 / 7 / 14 / 18 / 21 / 28 / 50 / 144 / 430 MHz.

• Foldable base element
• Extensive and clear installation manual
• Compact sized after disassembly, easy to take with you while travelling, packed only 60 cm long

Frequentie bereik: 3.5 / 7 / 14 / 18 / 21 / 28 / 50 / 144 / 430 MHz

Niet op voorraad - Levertijd in overleg

€ 149,96 (123.93 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: HF: 1/4 λ / 50 MHz: 1/4 λ / 144 MHz: 1/2 λ / 430 MHz: 2x 5/8 λ
• Gain: HF: 0 dBi / 50 MHz: 2.15 dBi / 144 MHz: 2.15 dBi / 430 MHz: 5.5 dBi
• VSWR: ≤ 1.5
• Power continues: 120 Watts (SSB)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Height: Max. 2600 mm
• Weight: 540 - 900 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

In de verpakking

• Antenna: Yes
• Installation manual: English

Downloads

• Informatieblad: UHV 9 Eng Manual ver2 All page
