CRT - DMC 520 M4 (E4)

Artikelnummer: 602013

Fabrieksnummer: MI 002013

Barcode: 3140650020168

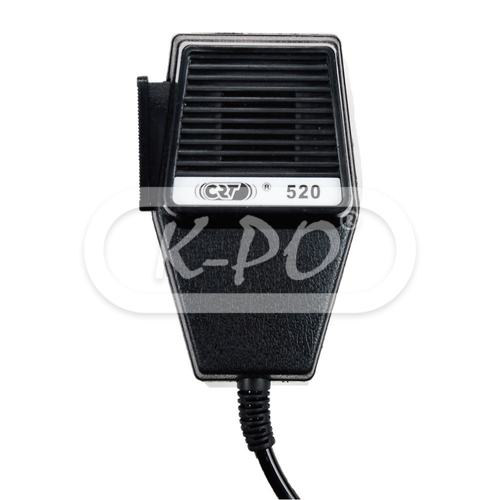

The CRT DMC 520 M4 (E4) is a nice solid and high quality microphone. This is an universal microphone and is suitable for most E4 4-pin CB radios.

Volgende werkdag verstuurd

€ 15,95 (13.18 excl. 21% BTW)

Features

• Suitable for: 4-pin E4 connector / Midland Alan 48 / Midland Alan 68 / Midland Alan 68 S / Midland 8001 S / Midland 8001 XT / Midland Alan Quarantotto / Midland Alan Sessantotto /

Elektrische eigenschappen

• Frequency response: 150-3000 Hz
• Impedance: 600 Ohm
• Sensitivity: -70 dB (0 dB=1 V/u bar)

Fysieke eigenschappen

• Cable Length: 2.2 meter

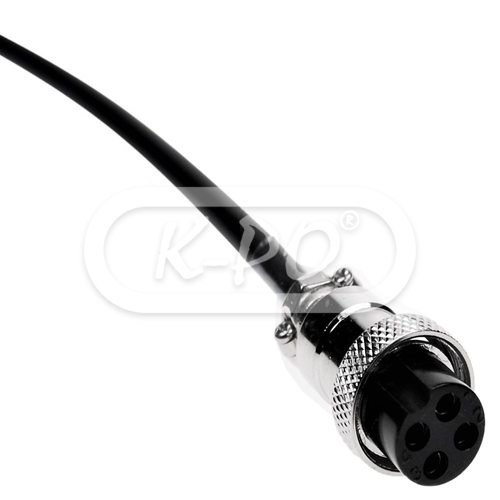

• Microphone connector: 4-pin

Microphone wiring

• Receive: Pin 3
• Transmit: Pin 4
• Mic Audio: Pin 1
• Ground: Pin 2
