CRT - DMC 520 P4

Artikelnummer: 601705

Fabrieksnummer: MI 001705

Barcode: 3140650020052

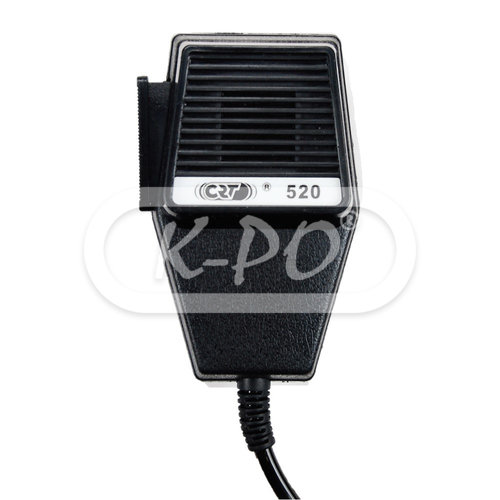

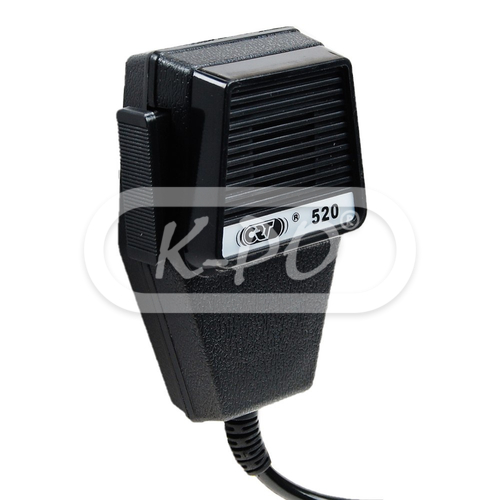

The CRT DMC 520 P4 is a nice solid and high quality microphone. This is an universal microphone and is suitable for most 4-pin CB radios.

Volgende werkdag verstuurd

€ 15,95 (13.18 excl. 21% BTW)

Features

• Suitable for: 4-pin standard connector / Danita 640 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President JFK II / President Valery Classic / President Wilson /

Elektrische eigenschappen

• Frequency response: 150-3000 Hz
• Impedance: 600 Ohm
• Sensitivity: -70 dB (0 dB=1 V/u bar)

Fysieke eigenschappen

• Cable Length: 2.2 meter

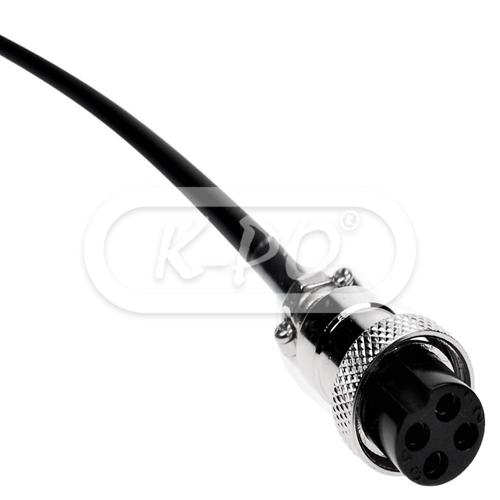

• Microphone connector: 4-pin

Microphone wiring

• Receive: Pin 4
• Transmit: Pin 3
• Mic Audio: Pin 2
• Ground: Pin 1
