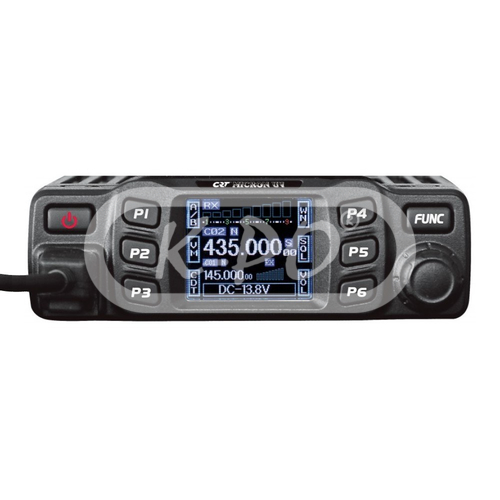

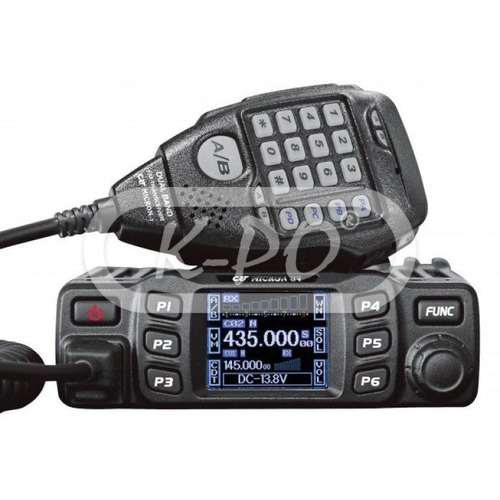

CRT - Micron UV V2 CRT - Micron UV V2

CRT - Micron UV V2

Artikelnummer: 600730
Fabrieksnummer: PM 000730
Barcode: 3140650024807

The CRT Micron V2 is a compact dual band radio for amateurs equipped with all important functions. Now with VOX function. The Micron V2 offers switchable output power 5 / 15 / 25 Watt in VHF and UHF.

Frequentie bereik: 144-146 MHz / 430-440 MHz
Volgende werkdag verstuurd - Stock: 4
€ 134,95 (111.53 excl. 21% BTW)

Features

  • Display: Yes, Large multi-function color TFT display
  • DTMF: Yes,
  • Modulation: FM (Wide/Narrow)
  • Working mode: UU / UV / VU / VV
  • Tone burst: 1000 Hz / 1450 Hz / 1750 Hz / 2100 Hz
  • Dual watch: Yes
  • Time out Timer: Yes
  • CTCSS / DCS: Yes
  • CTCSS / DCS scan: Yes
  • Scan: Yes
  • External speaker socket: Yes
  • Program: Yes, by computer

Elektrische eigenschappen

  • Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
  • Channels: 200
  • Wide and narrow bandwidth selection: Yes
  • Phase-locked Step: 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz
  • Operating temperature: -20℃ to +60℃

Transmitter

  • Power output (Watts): 25 / 15 / 5 Watt
  • Adjacent channel power: Wide: ≥70 dB / Narrow: ≥60 dB
  • Spurious Emission: Wide: ≥60 dB / Narrow: ≥60 dB
  • Audio distortion: ≤5%
  • Frequency stability: ±2.5 PPM
  • Type of modulation: Wide: 6KΦF3E / Narrow: 11KΦF3E
  • Hum & noise: Wide: ≥40 dB / Narrow: ≥36 dB
  • Audio response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-2.55 kHz +1 to -3 dB

Receiver

  • Sensitivity: Wide: ≤0.25μV / Narrow: ≤0.35μV
  • Hum & noise: Wide: ≥45 dB / Narrow: ≥40 dB
  • Audio distortion: ≤5%
  • Audio power output: >2W@8
  • Frequency stability: ±2.5 PPM
  • Audio response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-2.55 kHz +1 to -3 dB
  • Adjacent channel selectivity: Wide: ≥60 dB / Narrow: ≥60 dB

Fysieke eigenschappen

  • Length: 124 mm
  • Height: 39 mm
  • Width: 163 mm
  • Weight: 540 gram
  • Antenna connector: UHF (PL)
  • Mike connector: RJ45 connector

In de verpakking

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English, French
