CRT - SS 9900 V4 CRT - SS 9900 V4 CRT - SS 9900 V4 CRT - SS 9900 V4 CRT - SS 9900 V4 CRT - SS 9900 V4 CRT - SS 9900 V4

CRT - SS 9900 V4

Artikelnummer: 600990
Fabrieksnummer: TX 000990
Barcode: 3140650006445

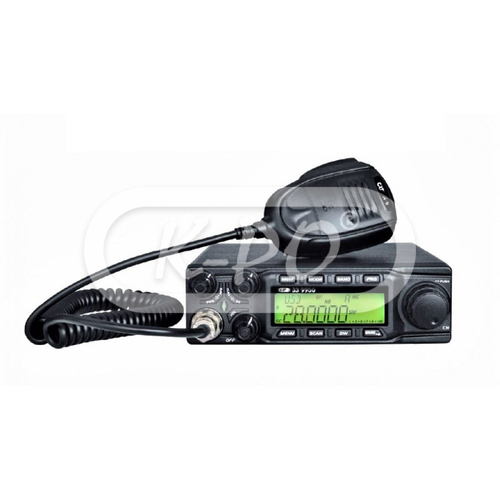

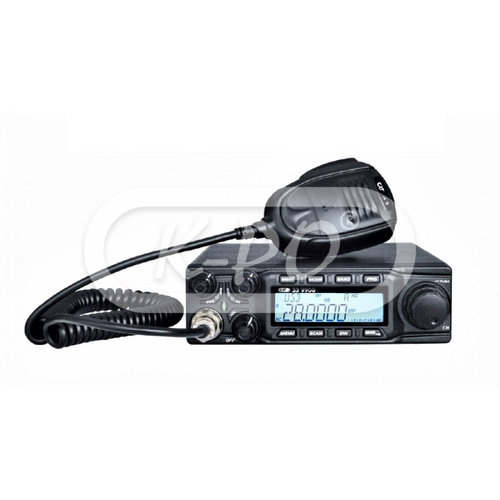

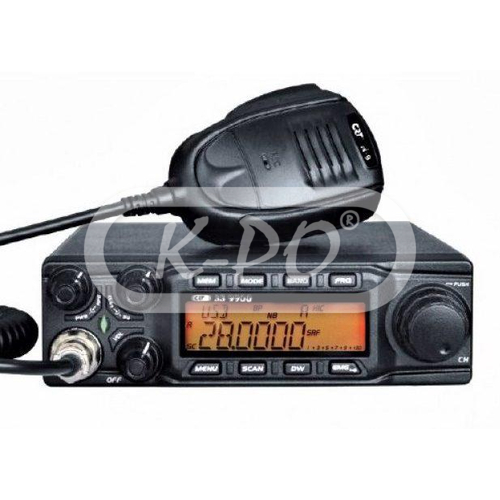

The CRT SS 9900 V4 is a 10 meter radio suitable for the frequency of 28.000 - 29.700 MHz. The radio can be programmed via computer with an optional programming cable

*Note, the programming cable is optional and not included!

Frequentie bereik: 28.000 - 29.695 MHz
Niet op voorraad - Levertijd in overleg
€ 239,96 (198.31 excl. 21% BTW)

Features

  • Modulation: AM / FM / SSB
  • Multi-bands: Yes
  • Output power: AM: 15 Watt / FM: 45 Watt / SSB: 60 Watt (PEP)
  • Channels: 40
  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / White
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem)
  • Keypad lock: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • MIC gain: Yes
  • RF gain: Yes
  • TOT (time out timer): Yes
  • Dual watch: Yes
  • Channel spacing: 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz
  • CTCSS: yes, 38 CTCSS
  • DCS: Yes, 104 DCS
  • Memory: Yes, 6 channels programmable
  • Roger Beep: Yes, with adjustable echo
  • Echo: Yes

Elektrische eigenschappen

  • Voltage: 13,8 Volt
  • Frequency step: 10 kHz / 100 kHz / 1 kHz / 100 Hz / 100 MHz /
  • Frequency stability: 0.001%
  • Operating temperature: -20° to +55° C
  • Frequency control: Phase-Locked-Loop Synthesizer
  • Frequency tolerance: 0.005%

Transmitter

  • SSB Carrier Suppression: 55 dB
  • Unwanted sideband: 50 dB
  • AM / FM freqyency response: 300 Hz - 3.0 kHz
  • SSB freqyency response: 450 Hz - 2.5 kHz

Receiver

  • Maximum audio power: 3 Watt
  • Internal speaker: 8 Ohm, round
  • SSB sensitivity: 0.25 µV for 20 dB
  • AM sensitivity: 1.0 µV for 10 dB
  • FM sensitivity: 1.0 µV for 20 dB
  • Adjacent channel selectivity SSB: 70 dB
  • Adjacent channel selectivity AM/FM: 60 dB
  • Image rejection: More than 65 dB
  • Automatic Gain Control (AGC): Less than 10 dB change in audio output for inputs from 10 to 100,000 mV
  • Squelch: Adjustable, threshold less than 1.0 μV Automatic Squelch Control (only AM/FM)
  • AM / FM freqyency response: 300 Hz - 3.0 kHz
  • SSB freqyency response: 450 Hz - 2.5 kHz

Fysieke eigenschappen

  • Length: 158 mm
  • Height: 48 mm
  • Width: 245 mm
  • Weight: 1500 gram
  • Antenna connector: UHF (PL)
  • Mike connector: Yes, 6 pin

In de verpakking

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, French
