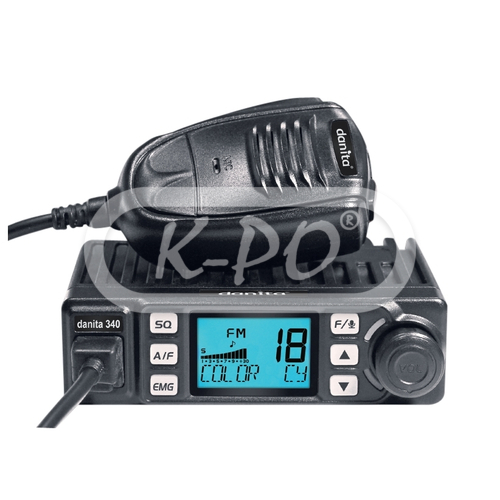

Danita - 340

Artikelnummer: 11190

Barcode: 5703316111907

New multi-band CB radio from Danita with 7 different color display.

Frequentie bereik: 26.965 - 27.405 MHz

Niet op voorraad - Levertijd in overleg

€ 59,96 (49.55 excl. 21% BTW)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / White
• VOX Function: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Keypad lock: Yes
• Scan function: Yes
• External speaker socket: Yes
• RF gain: Yes
• TOT (time out timer): Yes
• Dual watch: Yes
• Roger Beep: Yes

Elektrische eigenschappen

• Voltage: 13,8 Volt
• Operating temperature: -20° to +55° C
• Operating mode: F3E (FM) / A3E (AM)
• Frequency control: PLL synthesizer

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Drain: 3.0 A Max / Receive squelched 0.3 A / Vol max 0.7 A

Receiver

• AM sensitivity: 1.0 µV for 10 dB
• FM sensitivity: 1.0 µV for 10 dB
• Frequency response: 300 Hz - 3.0 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 1 Watt
• Internal speaker: 8 Ohm, round
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
• Audio distortion: Less than 8% @ 1 kHz
• Image rejection: 70 dB
• Squelch: less than 1 µV

Fysieke eigenschappen

• Length: 124 mm
• Height: 101 mm
• Width: 36 mm
• Weight: 428 gram
• Antenna connector: UHF (PL)
• Mike connector: RJ45 connector

In de verpakking

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English

Downloads

• Informatieblad: User manual Danita 340
