Danita - S27F

Artikelnummer: 34151

Fabrieksnummer: 34151

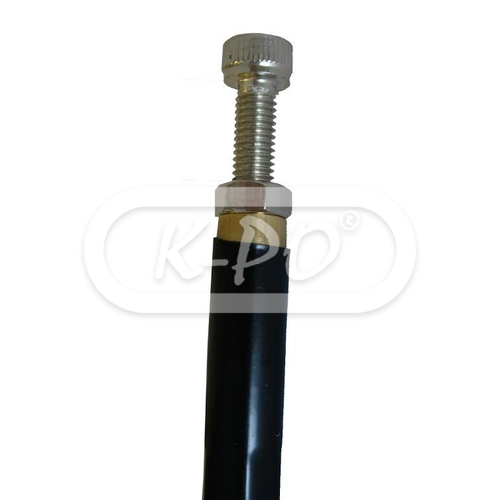

Pre-tuned at 27.2 MHz, can be fine tuned with the top-screw. The cable is angled 90° under the antenna base for easy installation under the vehicle roof. Can be mounted from both inside and outer side. FME-UHF (PL) connector is included, no soldering is needed.

Frequentie bereik: 26.9 - 27.4 MHz

Vandaag verstuurd

€ 54,95 (45.41 excl. 21% BTW)

Elektrische eigenschappen

• VSWR: ≤ 1.2
• Bandwidth: 500 kHz ≤ 2.0
• Power peak: 200 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Fysieke eigenschappen

• Materials: Glass fiber
• Height: 930 mm
• Weight: 490 gram
• Mounting type: Thru-hole

In de verpakking

• Antenna: Yes

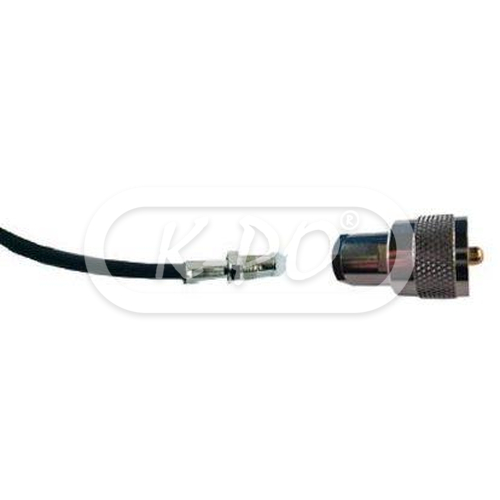

• Radio connector: UHF-male (PL)
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English
