HamKing - DS-3000

Artikelnummer: 6104

Fabrieksnummer: 6104

Barcode: 8718375101247

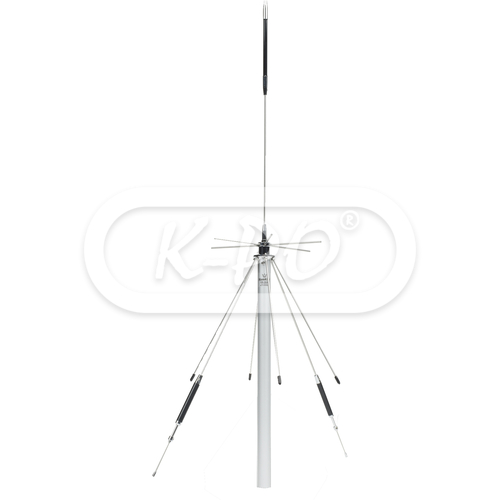

The HamKing DS-3000 is the perfect base antenna for use with a radio scanner. Not only receives the DS-3000 from 75 to 3000 MHz, it also is suitable for transmitting on the 144 MHz, 430 MHz, 900 MHz and 1296 MHz bands with a maximum power of 50 watts.

Frequentie bereik: TX: 144 / 430 / 900 / 1200 MHz, RX: 75 - 3000 MHz

Volgende werkdag verstuurd

€ 79,90 (66.03 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Discone
• Gain: 144 MHz: 2.15 dBi / 430 / 900 / 1200 MHz: 3 dBi
• VSWR: ≤ 1.5
• Power continues: 50 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 10 meter / RG 58

Fysieke eigenschappen

• Mast Ø: 30 - 48 mm
• Max wind resistance: 144 km/h
• Height: 1540 mm
• Weight: 690 gram
• Mounting type: On mast
• Antenna connector: UHF-female

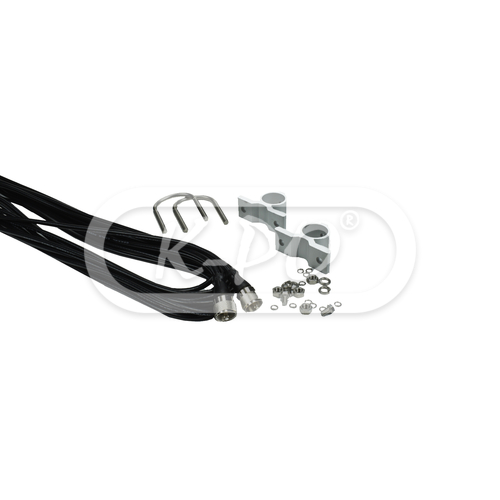

In de verpakking

• Antenna: Yes
• Radio connector: UHF-male
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English
