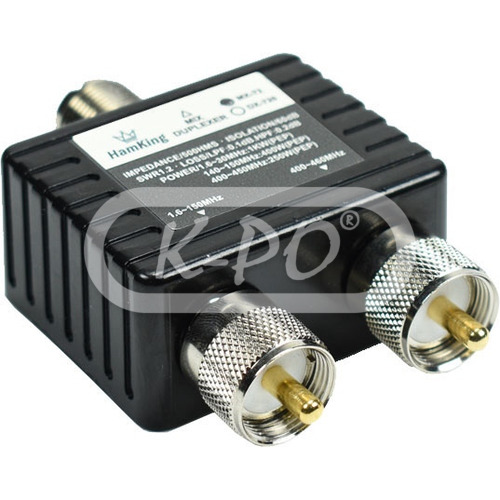

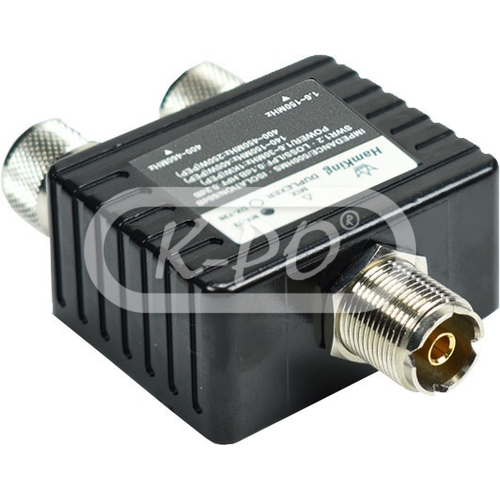

HamKing - DX-720D

Artikelnummer: 6112

Fabrieksnummer: 6112

Barcode: 8718375101322

The HamKing DX-720D is a high-quality HF/VHF/UHF duplexer, equipped with one UHF-female connector and two UHF-male connectors for the split frequency bands of 1.6 - 150 MHz and 400 - 460 MHz.

Frequentie bereik: 1.6-30 MHz / 140-150 MHz / 400-460 MHz

Niet op voorraad - Levertijd in overleg

€ 23,95 (19.79 excl. 21% BTW)

Elektrische eigenschappen

• Power continues: 1.6-30 MHz: 400 Watts / 140-150 MHz: 150 Watts / 400-460 MHz: 100 Watts
• Power peak: 1.6-30 MHz: 1kW (PEP) / 140-150 MHz: 400 Watts (PEP) / 400-460 MHz: 250 Watts (PEP)
• VSWR: <1.2
• Impedance: 50 Ohm
• Insertion loss: 1.6-30 / 140-150 MHz: LPF < 0.1 dB / 400-460 MHz: HPF < 0.2 dB

Fysieke eigenschappen

• Connector(s) type in: UHF (PL) male
• Connector(s) type out: UHF (PL) female
• Length: 85 mm
• Height: 55 mm
• Width: 27 mm
• Weight: 140 gram
