HamKing - MK-90

Artikelnummer: 6121

Fabrieksnummer: 6121

Barcode: 8718375101759

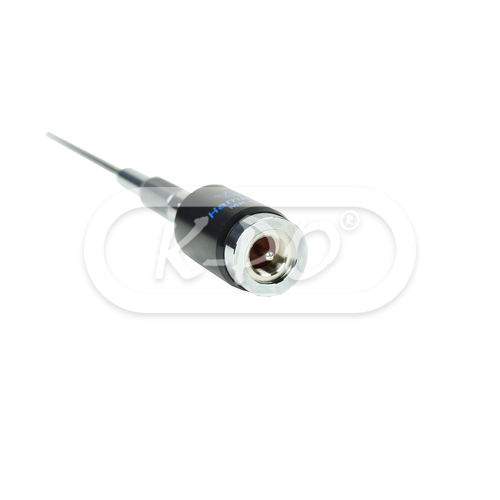

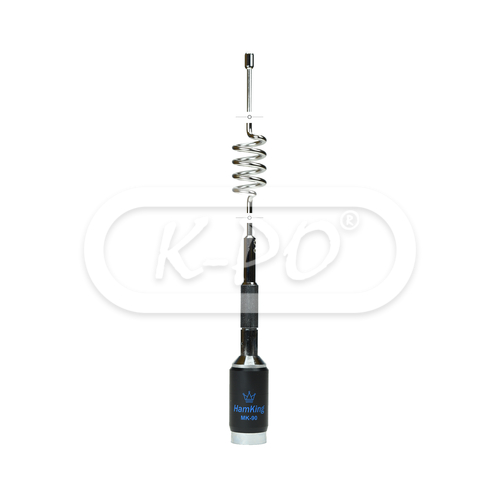

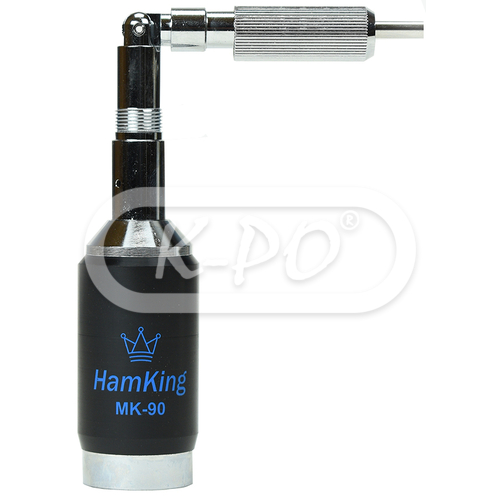

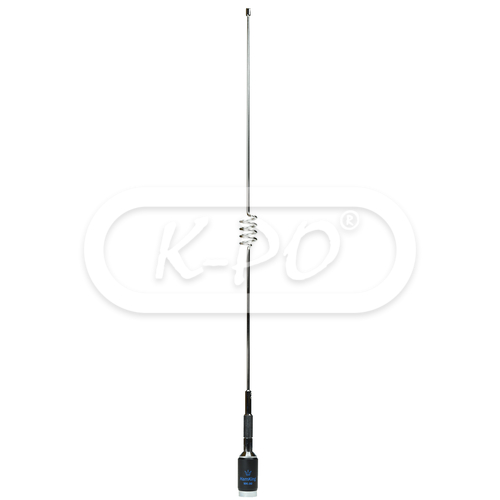

The HamKing MK-90 is a heavy duty pre-tuned mobile antenna, for best performance on 144 MHz and 430 MHz. With a maximum power handling of 350 watts on 144 MHz and 250 watts on 430 MHz. The whip is tiltable above the coil.

Frequentie bereik: 144 / 430 MHz

Vandaag verstuurd

€ 49,95 (41.28 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 144 MHz: 1/2 λ / 430 MHz: 5/8 λ
• Gain: 144 MHz: 3.0 dBi / 430 MHz: 5.5 dBi
• VSWR: ≤ 1.5
• Bandwidth: 144 MHz: 1/2 λ / 430 MHz: 5/8 λ
• Power continues: 144 MHz: 350 Watts / 430 MHz: 250 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Height: 890 mm
• Weight: 470 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)
• Color: Chrome

In de verpakking

• Antenna: Yes
• Installation manual: English
