HamKing - MX-72

Artikelnummer: 6111

Fabrieksnummer: 6111

Barcode: 8718375101315

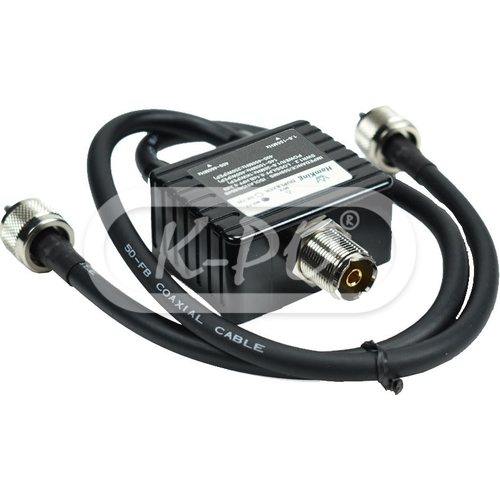

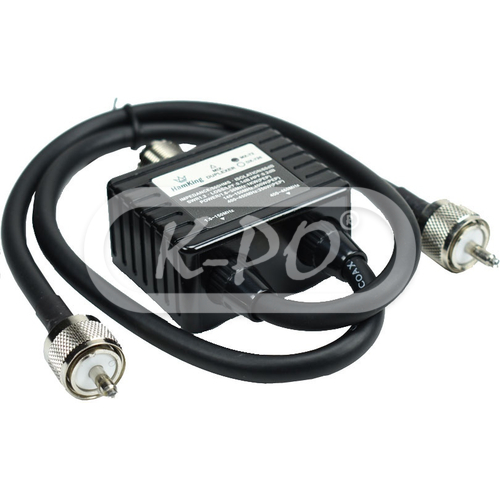

The HamKing MX-72 is a high quality HF/VHF/UHF duplexer with one UHF-female connector for common, and two leads with UHF-male connectors for the split frequency bands of 1.6-30 MHz, 140-150 MHz and 400-460 MHz.

Frequentie bereik: 1.6-30 MHz / 140-150 MHz / 400-460 MHz

Niet op voorraad - Levertijd in overleg

€ 34,94 (28.88 excl. 21% BTW)

Elektrische eigenschappen

• Power continues: 1.6-30 MHz: 400 Watts / 140-150 MHz: 150 Watts / 400-460 MHz: 100 Watts
• Power peak: u
• VSWR: <1.2
• Impedance: 50 Ohm
• Insertion loss: 1.6-30 / 140-150 MHz: LPF < 0.1 dB / 400-460 MHz: HPF < 0.2 dB

Fysieke eigenschappen

• Connector(s) type in: UHF (PL) female
• Connector(s) type out: 1.6-30 MHz: UHF (PL) male / 140-150 MHz: UHF (PL) male / 400-460 MHz: UHF (PL) male /
• Length: 60 mm
• Height: 55 mm
• Width: 27 mm
• Weight: 192 gram
