HamKing - X-30N

Artikelnummer: 6100
Fabrieksnummer: 6100
Barcode: 8718375101209

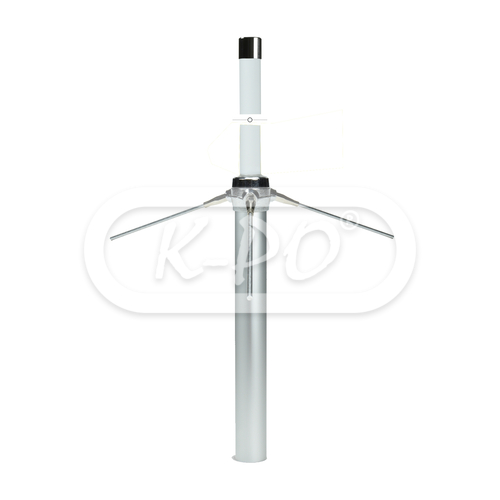

The HamKing X-30N vertical antenna for 144 MHz (3.0 dBi gain) and 430 MHz (5.5 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.

Frequentie bereik: 144 / 430 MHz
Volgende werkdag verstuurd
€ 41,95 (34.67 excl. 21% BTW)

Elektrische eigenschappen

  • Electrical type: 144 MHz: 1/2 λ / 430 MHz: 2x5/8 λ
  • Gain: 144 MHz: 3 dBi / 430 MHz: 5.5 dBi
  • VSWR: ≤ 1.5
  • Power continues: 150 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Fysieke eigenschappen

  • Mast Ø: 30 - 48 mm
  • Max wind resistance: 216 km/h
  • Height: 1300 mm
  • Weight: 700 gram
  • Mounting type: On mast

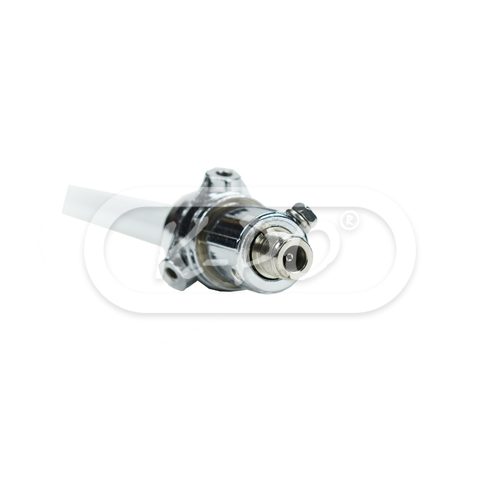

  • Antenna connector: N-female

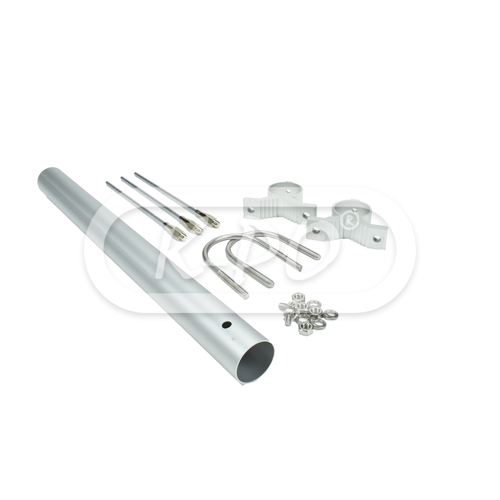

In de verpakking

  • Antenna: Yes

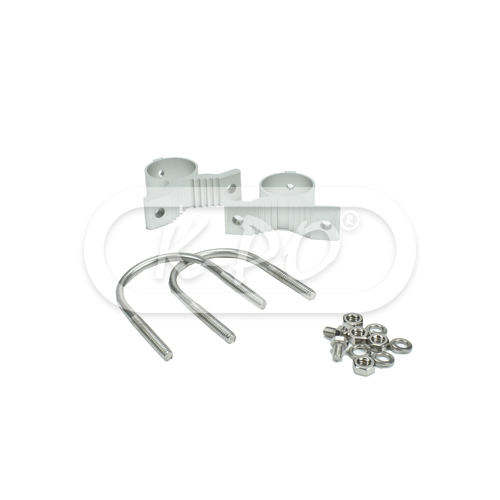

  • Mounting parts: Yes
  • Installation manual: English
