HamKing - X-50N

Artikelnummer: 6101

Fabrieksnummer: 6101

Barcode: 8718375101216

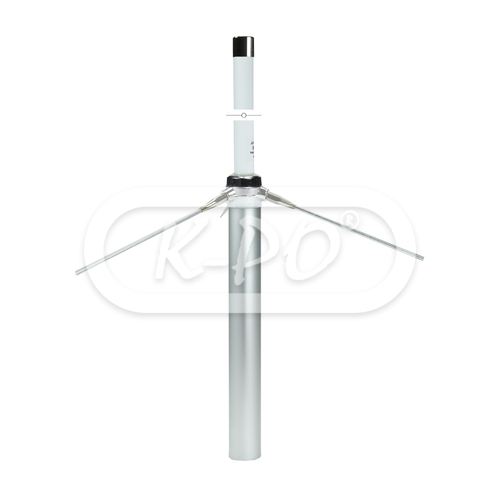

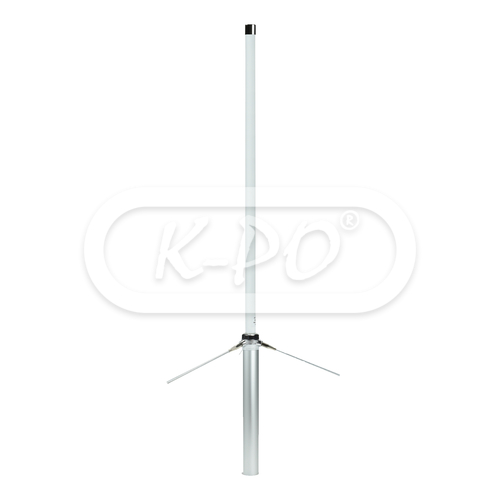

The HamKing X-50N vertical antenna for 144 MHz (4.5 dBi gain) and 430 MHz (7.2 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.

Frequentie bereik: 144 / 430 MHz

Volgende werkdag verstuurd

€ 50,95 (42.11 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 144 MHz: 6/8 λ C-Load / 430 MHz: 3x5/8 λ C-Load
• Gain: 144 MHz: 4.5 dBi / 430 MHz: 7.2 dBi
• VSWR: ≤ 1.5
• Power continues: 200 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Mast Ø: 30 - 48 mm
• Max wind resistance: 216 km/h
• Height: 1700 mm
• Weight: 900 gram
• Mounting type: On mast

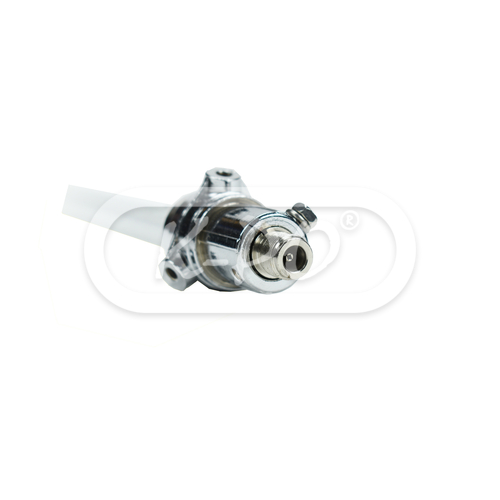

• Antenna connector: N-female

In de verpakking

• Antenna: Yes

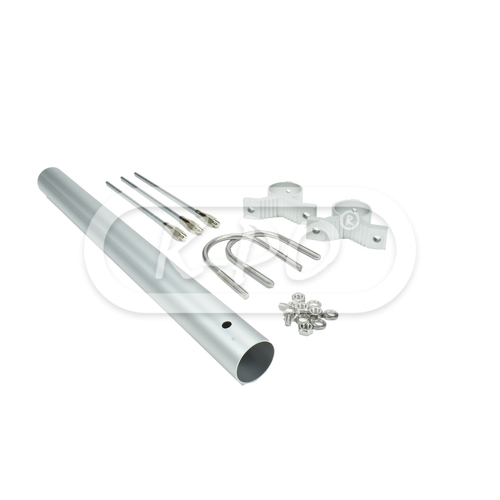

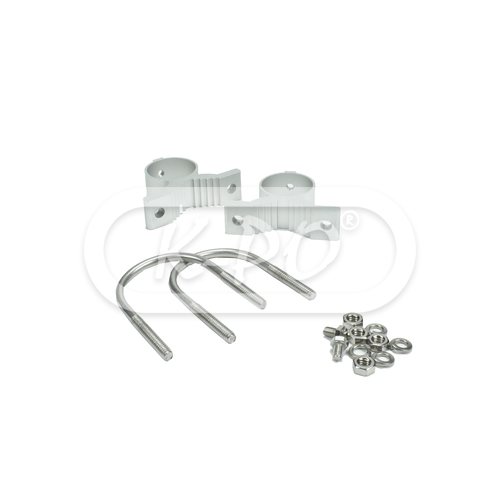

• Mounting parts: Yes
• Installation manual: English
