Himunication - HM160 MAX (ATIS)

Artikelnummer: 48160

Fabrieksnummer: 48160

Barcode: 6970344031531

The Himunication HM160 MAX replaces the popular HM160 and is a semi professional handheld VHF marine radio.

Frequentie bereik: TX: 156.025 to 162.425 MHz / RX: 156.025 to 163.275 MHz

Vandaag verstuurd

€ 179,95 (148.72 excl. 21% BTW)

Features

• Float and flash: Yes
• Channel 31: Yes
• 16/9 channel switch: Yes
• Private channel facility: Yes
• Dual and tri watch: Yes
• Display: LCD with white background light
• High/low power selection: Yes
• ATIS: Yes, one-time programmable by keypad

Elektrische eigenschappen

• Channels: 56 INT channels / 52 USA channels / 59 Canada channels / 10 Weather channels (only for USA) / 99 Private channels
• Frequency stability: ±5 PPM
• Operating temperature (Celsius): -15 to +55 °C
• Battery lifetime: TX 5% / RX 5% / Stand-by 90%) : ≥ 24 hours
• Record function: Yes, max 60 seconds

Transmitter

• Power output (Watts): 6 / 3 / 1 Watt
• Modulation: FM (16K0G3E)
• Channel spacing: 25 KHz
• Frequency stability: ±5 PPM
• Oscillate mode: PLL
• Normal working voltage: 3.7 V (With Li-Polymer Battery 4000mAh)
• Low limit working voltage: 3 V
• Built-in speaker: Yes, Diameter 40 mm / Impedance 8 Ohm
• Memory: EEPROM

Fysieke eigenschappen

• Length: 155 mm
• Height: 40 mm
• Width: 60 mm
• Weight: 285 gram
• Antenna connector: SMA

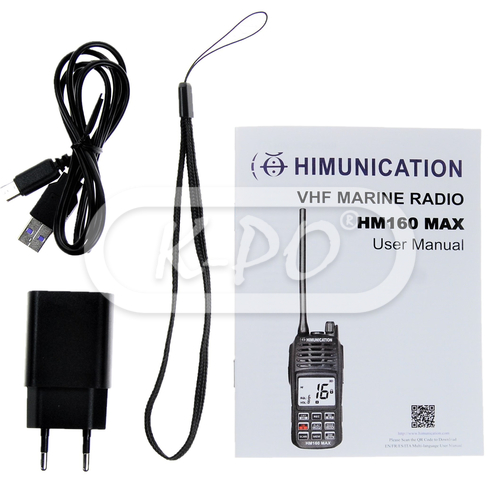

In de verpakking

• Transceiver: Yes
• Battery: Li-ion 4000 mAh
• Wrist strap: Yes
• Installation manual: English
• Hi-gain flexible antenna: Yes
• Belt clip: Yes
• USB cable: Yes
• USB charger: Yes

Downloads

• Informatieblad: HM160 MAX User Manual EN WM
