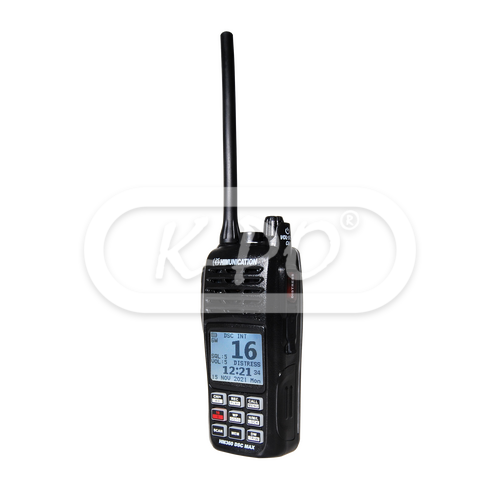

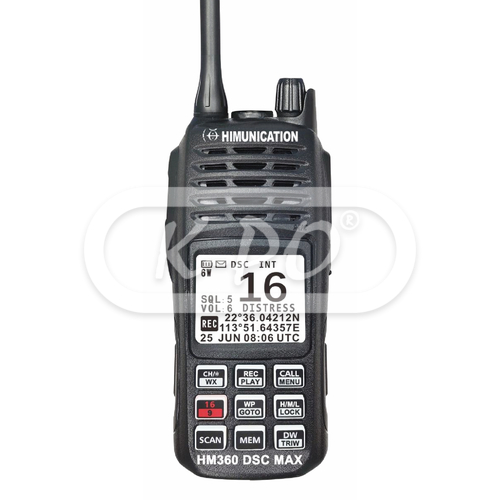

Himunication - HM360 MAX DCS/GPS (ATIS)

Artikelnummer: 48360

Barcode: 6970344030268

The Himunication HM360 MAX is Himunication' new top handheld marineradio with DSC and GNSS (GPS). It replaces the Himunication HM360

Frequentie bereik: TX: 156.025 to 162.425 MHz / RX: 156.025 to 163.275 MHz

Vandaag verstuurd

€ 299,95 (247.89 excl. 21% BTW)

Features

• Float and flash: Yes
• Channel 31: Yes
• 5/1 Watts switchable power: Yes
• 16/9 channel switch: Yes
• Private channel facility: Yes
• Dual and tri watch: Yes
• Display: Dot-Matrix 128x108 2.0 inch LCD with white back light
• High/low power selection: Yes
• MOB alert (man overboard): Yes
• Distress key: Yes
• Torch: Yes
• ATIS: Yes, one-time programmable by keypad
• Digital Selectivity Calling (DSC): Yes, Class 'H'
• GPS, GNNS: Yes, built-in GPS receiver
• COG & SOG: Yes

Elektrische eigenschappen

• Channels: 56 INT channels / 52 USA channels / 59 Canada channels / 10 Weather channels (only for USA) / 99 Private channels
• Frequency stability: ±5 PPM
• Operating temperature (Celsius): -15 to +55 °C
• Battery lifetime: (TX 5% / RX 5% / Stand-by 90%): ≥ 10 hours

Transmitter

• Power output (Watts): 6 / 3 / 1 Watts
• Modulation: FM (16K0G3E) / DSC (16K0G2B)
• Channel spacing: 25 KHz
• Oscillate mode: PLL
• Normal working voltage: 3.7 V (With Li-Polymer Battery 4000mAh)
• Low limit working voltage: 3 V
• Memory: EEPROM

Fysieke eigenschappen

• Length: 155 mm
• Height: 40 mm
• Width: 60 mm
• Weight: 287 gram
• Antenna connector: SMA

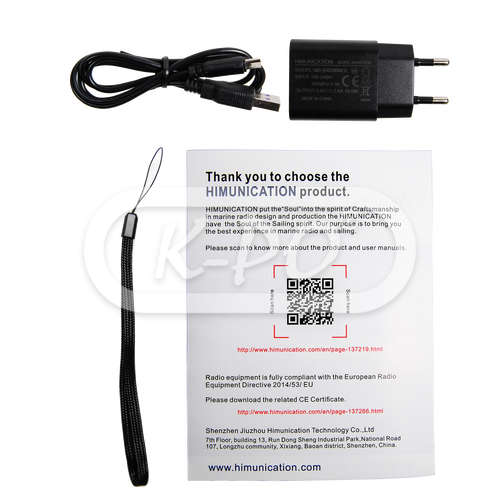

In de verpakking

• Transceiver: Yes
• Battery: Li-ion 4000 mAh
• Charger: C-type USB charging cable (can used for programming too)
• Wrist strap: Yes
• Installation manual: English
• Hi-gain flexible antenna: Yes

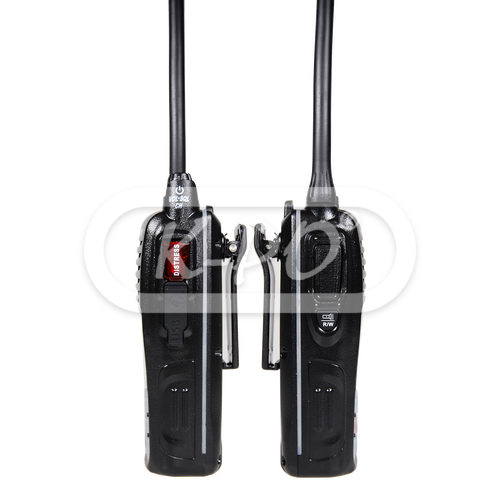

• Belt clip: Yes

Downloads

• Informatieblad: HM360 DSC MAX English Manual
