Himunication - HM390S AIS/DSC/GPS (ATIS) Himunication - HM390S AIS/DSC/GPS (ATIS) Himunication - HM390S AIS/DSC/GPS (ATIS) Himunication - HM390S AIS/DSC/GPS (ATIS) Himunication - HM390S AIS/DSC/GPS (ATIS) Himunication - HM390S AIS/DSC/GPS (ATIS)

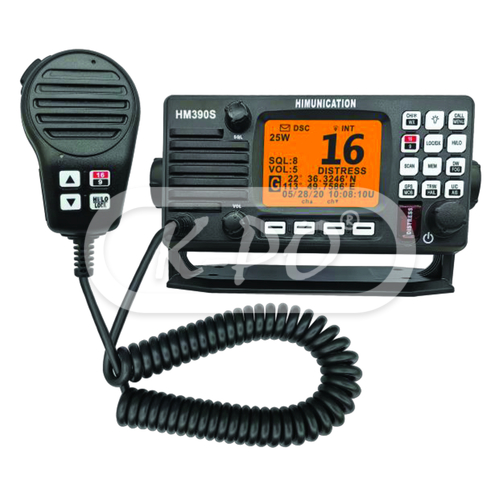

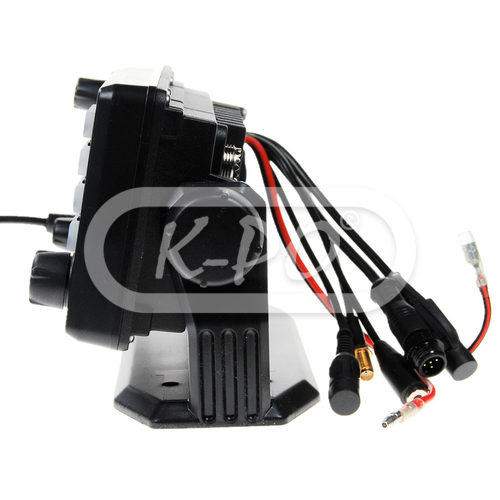

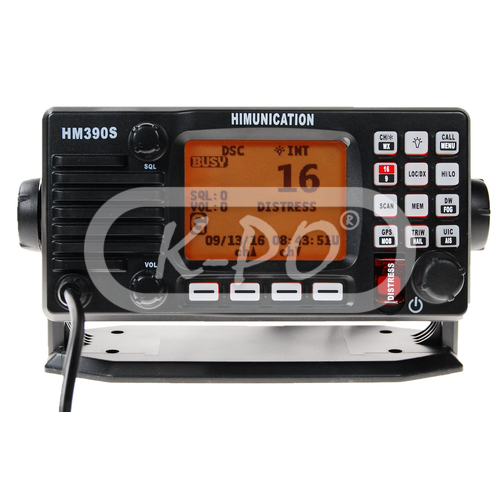

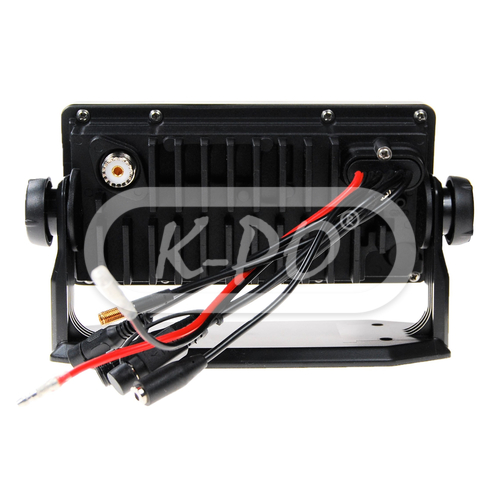

Himunication - HM390S AIS/DSC/GPS (ATIS)

Artikelnummer: 48391
Barcode: 6970344030176

The HM390S is a new generation VHF Marine Band DSC Class-D radio with internal AIS receiver and integrated GPS receiver. The HM390S marine radio is equipped with a large LCD monitor which shows clearly all data from most viewing angles and conditions. Standard with features like ATIS, FOG anchor alarm, MOB function and more. Simple and easy to operate, almost all functions are accessible by using only 4 buttons. Slim and compact design which makes it easy to install with the supplied materials. Despite the compact size the radio is equipped with a large loudspeaker.

Frequentie bereik: TX: 156.025 to 157.425 MHz / RX: 156.300 to 162.000 MHz
Vandaag verstuurd - Stock: 6
€ 369,95 (305.74 excl. 21% BTW)

Features

  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: Large LCD with full dot-matrix display
  • Bandwidth: TX: 156.025 to 157.425 MHz / RX: 156.300 to 162.00 MHz
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Distress key: Yes
  • ATIS: Yes, one-time programmable by keypad
  • Digital Selectivity Calling (DSC): Yes, Class 'D'
  • GPS: Yes, built-in GPS receiver
  • GPS frequency: 2.401 - 2.480 GHz
  • 1 / 25 Watts switchable power: Yes
  • Weather channel: Yes
  • Channel 31 and 37: Yes, pre-programmed
  • AIS Receiver: 161.9750 - 162.025 MHz (2 channels)

Elektrische eigenschappen

  • Channels: 56 INT channels / 52 USA channels / 59 Canada channels / 10 Weather channels (only for USA) / 99 Private channels
  • Frequency stability: ±5 PPM
  • Operating temperature (Celsius): -15 to +55ËšC

Transmitter

  • Power output (Watts): 1 / 25 Watts
  • Modulation: FM (16K0G3E) / DSC/ATIS (16K0G2B)
  • Channel spacing: 25 kHz
  • Oscillate Mode: PLL
  • Built-in speaker: Yes
  • Audio distortion: 5%

Fysieke eigenschappen

  • Length: 210 mm
  • Height: 111 mm
  • Width: 57 mm
  • Weight: 1200 gram
  • Antenna connector: UHF (PL) female
  • NMEA0183 connectors: Yes
  • NMEA2000 connectors: Yes
  • NMEA input (receive): RMC, GGA, GLL, ZDA, VTG, GSV
  • NMEA output (transmit): DSC (for DSC call) DSE (for enhanced position) AIVDM

GPS

  • Channels: 56
  • Sensitivity: Tracking:-161dBm / Reacquisition:-160dBm / Cold start:-147dBm
  • Cold/Hot start: 60 seconds, average / 40 second, average

In de verpakking

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English
  • Microphone holder: Yes
