K-PO - AV-DL 200 M

Artikelnummer: 90200

Barcode: 8718375100387

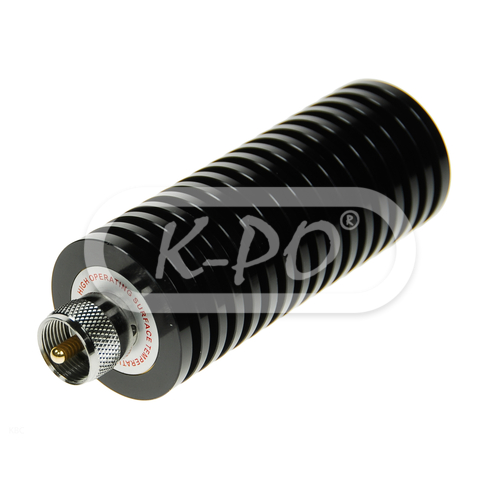

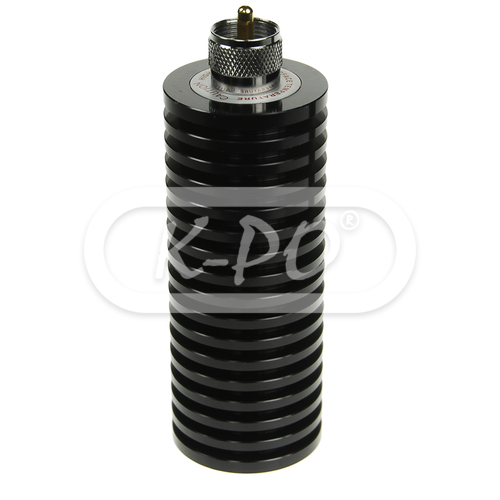

The K-PO AV-DL 200 M is a dummy load suitable for 1.0 GHz and equipped with a UHF (PL) male connector. The dummy load can you use at 35 Watts continues and 200 Watts peak.

Frequentie bereik: Up to 1 GHz

Vandaag verstuurd - Stock: 3

€ 59,96 (49.55 excl. 21% BTW)

Elektrische eigenschappen

• Power continues: 35 Watts
• Power peak: 200 Watts (5 sec on 60 sec off)
• VSWR: >=1.16 at full range
• Impedance: 50 Ohm

Fysieke eigenschappen

• Connector(s) type in: UHF (PL) male
• Length: 145 mm
• Height: 45 mm
• Width: 45 mm
• Weight: 375 gram
