K-PO - AV-SW-M-2M2N

Artikelnummer: 905206

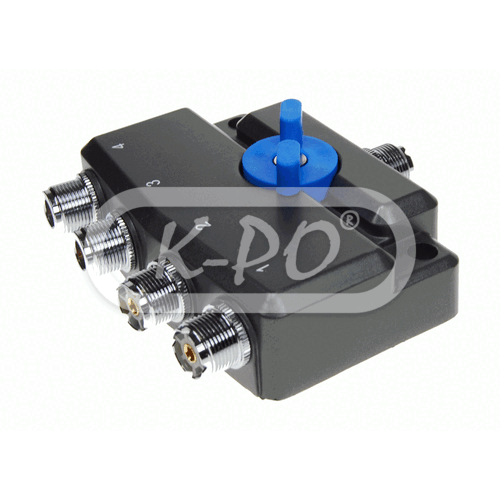

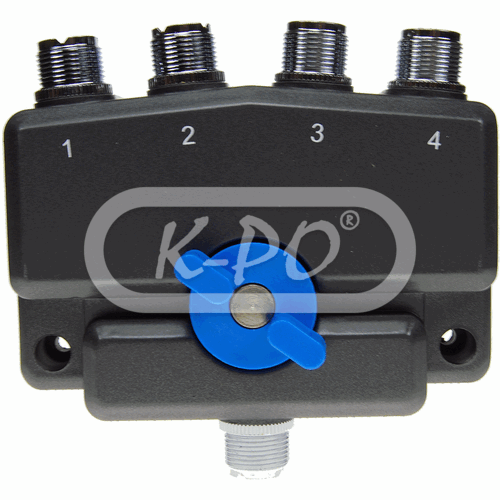

The K-PO AV-SW-M-2M-2N is a 4 way antenna switch with a UHF (PL) female input connector and 2x UHF (PL) female and 2x N female output connectors.

Frequentie bereik: Up to 900 MHz

Niet op voorraad - Levertijd in overleg

€ 83,95 (69.38 excl. 21% BTW)

Elektrische eigenschappen

• VSWR: 0-500 MHz: >=1.15 / 500-900 MHz: >=1.20
• Impedance: 50 Ohm
• Insertion loss: 0-500 MHz: >=0.1dB / 500-900 MHz: >=0.2dB
• Isolation: 0-500 MHz: <=60dB / 500-900 MHz: <+55dB
• Power range: 0-30 MHz: 1.5 kW / 30-200 MHz: 1.0 kW / 200-500 MHz: 500 W / 500-900MHz: 250 W

Fysieke eigenschappen

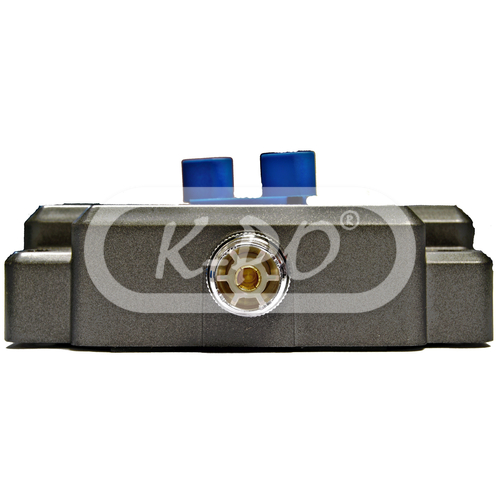

• Connector(s) type in: UHF (PL) female

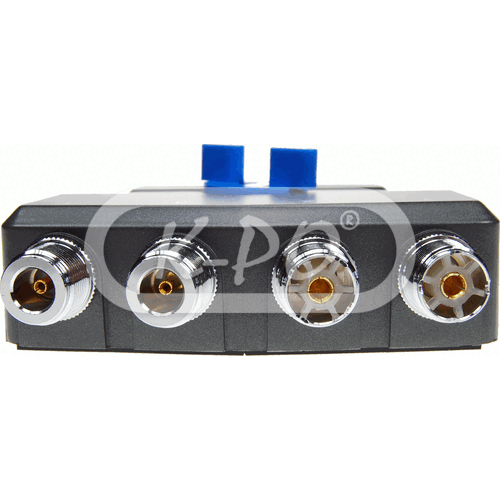

• Connector(s) type out: N female / UHF (PL) female /
• Length: 110 mm
• Height: 35 mm
• Width: 110 mm
• Weight: 905 gram
