K-PO - AV-SW-N-0M4N

Artikelnummer: 905205

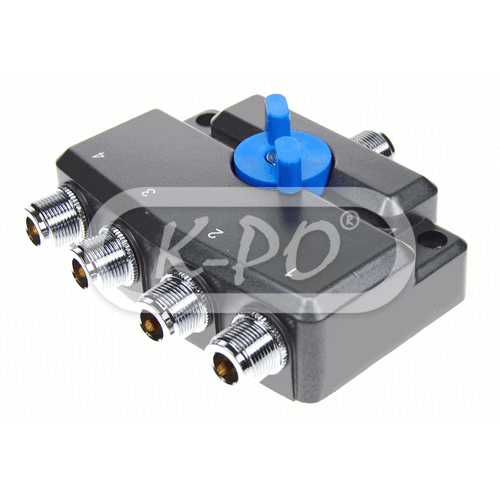

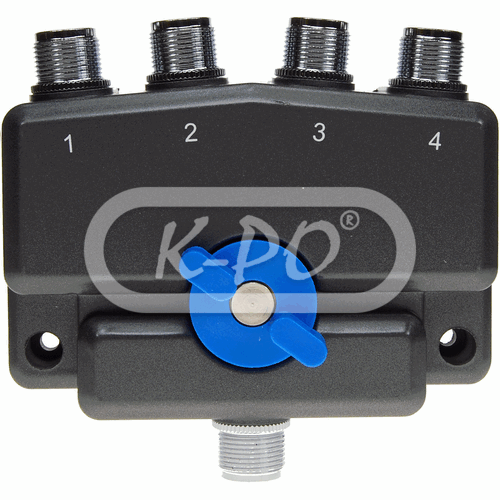

The K-PO AV-SW-N-0M4N is a 4 way antenna switch with a N female input connector and 4x N female output connectors.

Frequentie bereik: Up to 1.5 GHz

Vandaag verstuurd - Stock: 3

€ 89,95 (74.34 excl. 21% BTW)

Elektrische eigenschappen

• VSWR: 0-500 MHz: >=1.15 / 500-900 MHz: >=1.20 / 900 MHz-1.5 GHz : >=1.25
• Impedance: 50 Ohm
• Insertion loss: 0-500 MHz: >=0.1dB / 500-900 MHz: >=0.2dB / 900 MHz-1.5 GHz: >=0.3dB
• Isolation: 0-500 MHz: <=60dB / 500-900 MHz: <+55dB / 900 MHz-1.5 GHz: <+50dB
• Power range: 0-30 MHz: 1.5 kW / 30-200 MHz: 1.0 kW / 200-500 MHz: 500 W / 500-900 MHz: 250 W / 900 MHz-1,5 GHz: 150W

Fysieke eigenschappen

• Connector(s) type in: N female
• Connector(s) type out: N female
• Length: 110 mm
• Height: 35 mm
• Width: 110 mm
• Weight: 905 gram
