K-PO - CX-201 N

Artikelnummer: 905003

Barcode: 8718375100998

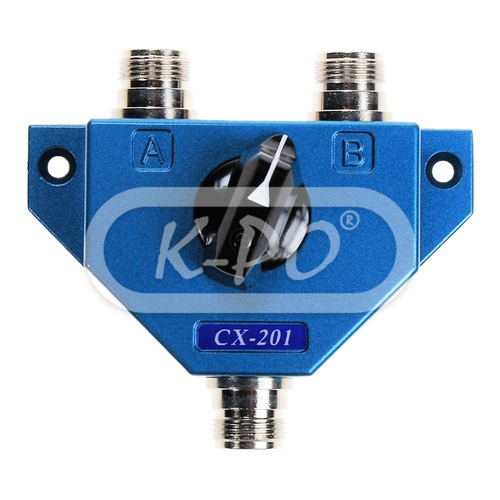

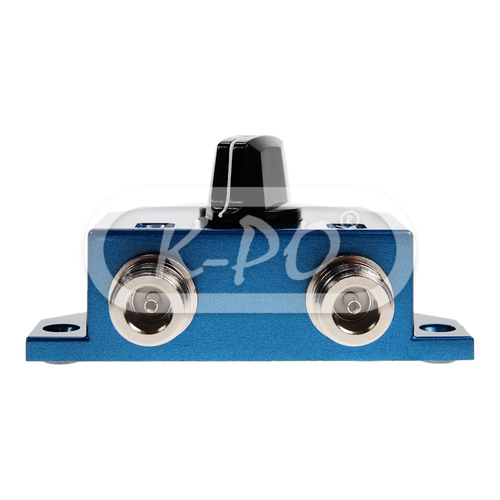

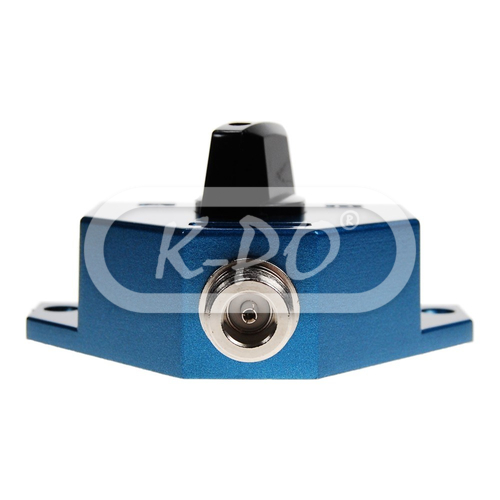

The K-PO CX-201 N is a 2 way antenna switch with a N female input connector and 2x N female output connectors.

Frequentie bereik: Up to 600 MHz

Vandaag verstuurd

€ 34,94 (28.88 excl. 21% BTW)

Elektrische eigenschappen

• Power continues: Max 1 kW
• VSWR: Less than 1.2:1
• Impedance: 50 Ohm
• Insertion loss: Less than 0.2 dB
• Isolation: Better than 50 dB

Fysieke eigenschappen

• Connector(s) type in: N female
• Connector(s) type out: N female
• Length: 90 mm
• Height: 40 mm
• Width: 80 mm
• Weight: 350 gram
