K-PO - DMC 110 P6

Artikelnummer: 910111

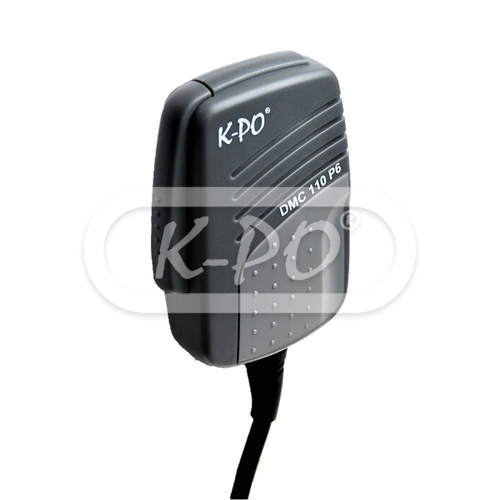

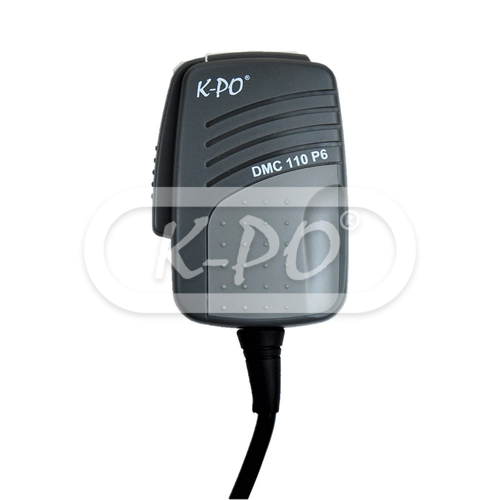

The K-PO DMC 110 P6 is a nice small, high quality microphone. This is an universal microphone and is suitable for most 6 pin CB radios.

Volgende werkdag verstuurd

€ 18,95 (15.66 excl. 21% BTW)

Features

• Suitable for: 6-pin standard connector

Elektrische eigenschappen

• Frequency response: 300-8000 Hz
• Impedance: 500 Ohm
• Sensitivity: -72dB ± 3dB (at 1kHz)

Fysieke eigenschappen

• Cable Length: 2.40 m

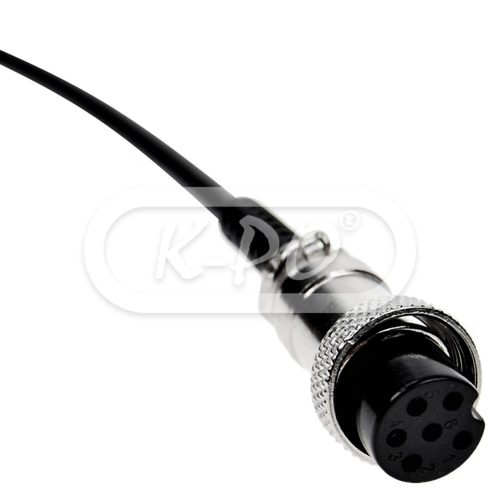

• Microphone connector: 6-pin

Microphone wiring

• Receive: Pin 2
• Transmit: Pin 3
• Mic Audio: Pin 1
• Ground: Pin 5
