K-PO - DMC 520 P6

Artikelnummer: 910007

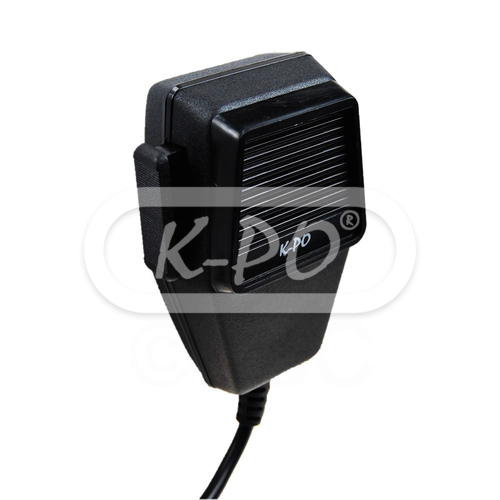

The K-PO DMC 520 P6 is a nice solid and high quality microphone. This is an universal microphone and is suitable for most 6 pin CB radios.

Volgende werkdag verstuurd

€ 16,95 (14.01 excl. 21% BTW)

Features

• Suitable for: 6-pin standard connector / Midland Alan 48 Excel / Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Grant II ASC / President Harry ASC / President Harry II ASC / President Harry III ASC / President Henry ASC / President Jackson II / President JFK II / President Jimmy II ASC / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson II / President Johnson II VOX / President Lincoln II ASC / President Lincoln II + / President Martin ASC / President MC Kinley / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Richard / President Ronald / President Walker / President Walker II ASC /

Elektrische eigenschappen

• Frequency response: 200 - 5000 Hz
• Impedance: 500 Ohm
• Sensitivity: -76 dB (0 dB=1 V/u bar)

Fysieke eigenschappen

• Cable Length: 2.20 meter

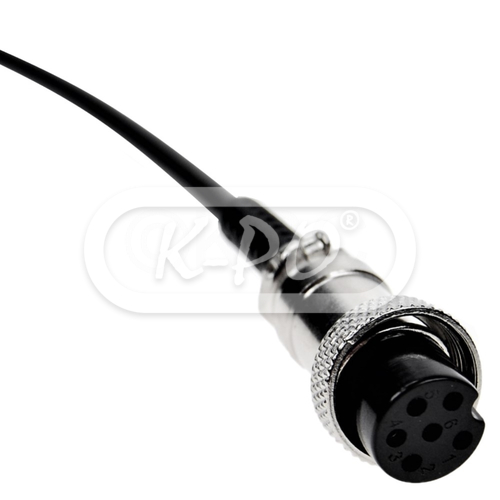

• Microphone connector: 6-pin

Microphone wiring

• Receive: Pin 2
• Transmit: Pin 3
• Mic Audio: Pin 1
• Ground: Pin 5
