K-PO - HF-2500 K-PO - HF-2500

K-PO - HF-2500

Artikelnummer: 7464

The K-PO HF-2500 is a high quality low loss coax cable with CPR/ECA classification. The cable is comparable to Aircell 7 cable with similar specifications.

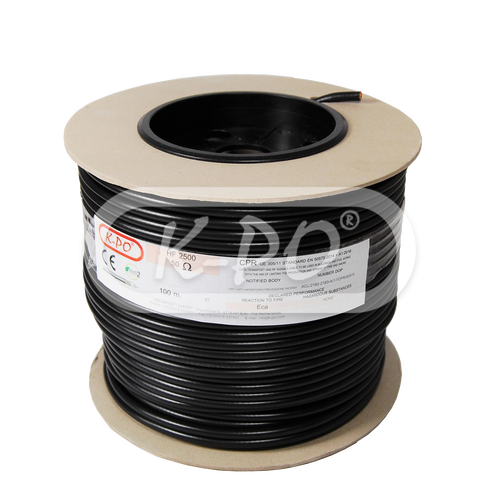

100 meter on roll.

Vandaag verstuurd
€ 179,95 (148.72 excl. 21% BTW)

Features

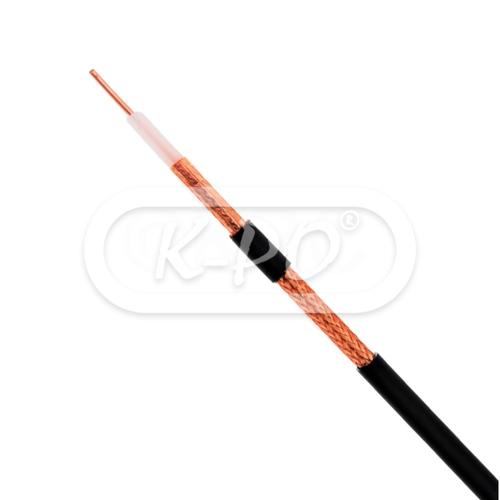

  • Plain copper inner conductor: 7 x 0,65 mm
  • Low density polyethylene dielectric: ø 5,00 ± 0,10 mm
  • Plain copper outer conductor: h. 18 mm
  • Percentage coverage: 100%
  • Sheath color: Black - RAL 9004
  • Copper weight: 3.47 kg (100m)
  • Cable weight: 7.3 kg (100m)
  • Impedance: 50 ± 3 Ohm
  • Capacitance: 80 pF/m
  • Velocity ratio: 80%
  • Inner conductor resistance: 7,8 Ohm/Km
  • Temperature range: -30°C to +70°C

    Attenuations dB/100m

  • 5 MHz: 2.7 dB
  • 10 MHz: 4.1 dB
  • 50 MHz: 9.7 dB
  • 100 MHz: 14.0 dB
  • 200 MHz: 20.5 dB
  • 400 MHz: 30.2 dB
  • 500 MHz: 34.5 dB
  • 600 MHz: 38.3 dB
  • 800 MHz: 45.5 dB
  • 1000 MHz: 52.3 dB
