K-PO - NM 532 P6 K-PO - NM 532 P6 K-PO - NM 532 P6

K-PO - NM 532 P6

Artikelnummer: 910032

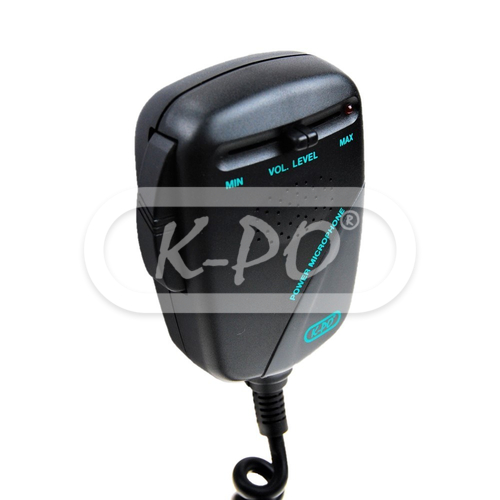

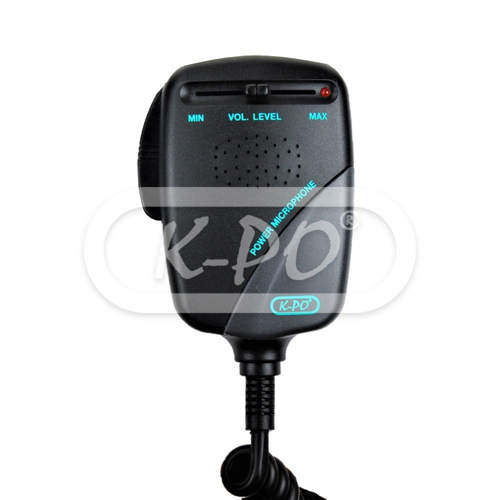

The K-PO NM 532 is a high quality power microphone to enhance audio sound. This microphone is suitable for most 6 pin CB radios. It features a slide volume control and on air indicator light. The microphone requires a 9V battery (not included).

Niet op voorraad - Levertijd in overleg
€ 38,95 (32.19 excl. 21% BTW)

Features

  • Suitable for: 6-pin standard connector / Midland Alan 48 Excel / Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Grant II ASC / President Harry ASC / President Harry II ASC / President Harry III ASC / President Henry ASC / President Jackson II / President JFK II / President Jimmy II ASC / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson II / President Johnson II VOX / President Lincoln II ASC / President Lincoln II + / President Martin ASC / President MC Kinley / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Richard / President Ronald / President Walker / President Walker II ASC /
  • Volume control: Yes

Elektrische eigenschappen

  • Frequency response: 300 Hz - 6 kHz
  • Impedance: 1K Ohm (at 1 kHz)
  • Sensitivity: -42 dB (at 1 kHz)

Fysieke eigenschappen

  • Cable Length: 1.8 meter

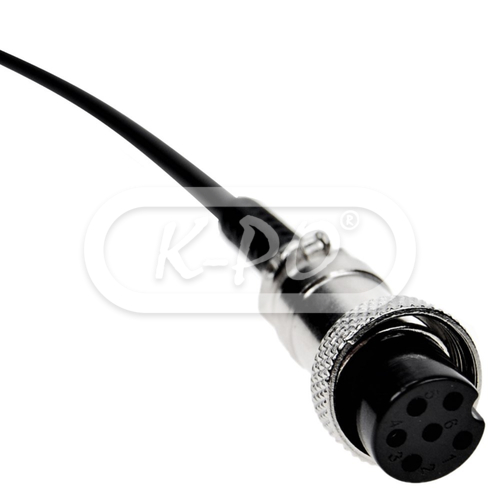

  • Microphone connector: 6-pin
  • Battery: Standard 9 volt battery (not included).

Microphone wiring

  • Receive: Pin 2
  • Transmit: Pin 3
  • Mic Audio: Pin 1
  • Ground: Pin 5
