Features

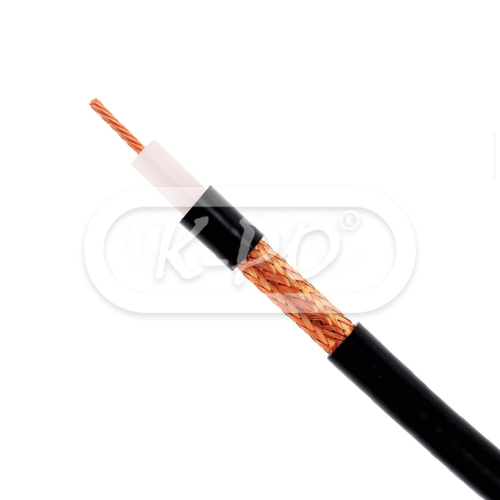

• Plain copper inner conductor: 7 x 0,65 mm
• Low density polyethylene dielectric: ø 6,30 ± 0,15 mm
• Plain copper outer conductor: 144 x 0,12 mm
• Percentage coverage: 70%
• Non-contaminating polyvinyl-chloride sheath: ø 9,50 ± 0,18 mm
• Sheath color: Black - RAL 9004
• Copper weight: 3.70 kg (100m)
• Cable weight: 11.62 kg (100m)
• Impedance: 50 ± 3 Ohm
• Capacitance: 100 pF/m
• Velocity ratio: 66%
• Inner conductor resistance: 7,8 Ohm/Km
• Temperature range: -30°C to +70°C

Attenuations dB/100m.

• 5 MHz: 1.4 dB
• 10 MHz: 2.0 dB
• 50 MHz: 4.9 dB
• 100 MHz: 7.4 dB
• 200 MHz: 10.8 dB
• 400 MHz: 16.0 dB
• 500 MHz: 18.5 dB
• 600 MHz: 20.6 dB
• 800 MHz: 24.3 dB
• 1000 MHz: 28.0 dB
