K-PO - RG 213 MIL-C-17 K-PO - RG 213 MIL-C-17

K-PO - RG 213 MIL-C-17

Artikelnummer: 7500

The K-PO RG 213 MIL-C-17 is a professional quality coax cable and the best RG 213 coax cable available. With CPR/ECA classification. Specifications are close to that of low loss 'air' cables.

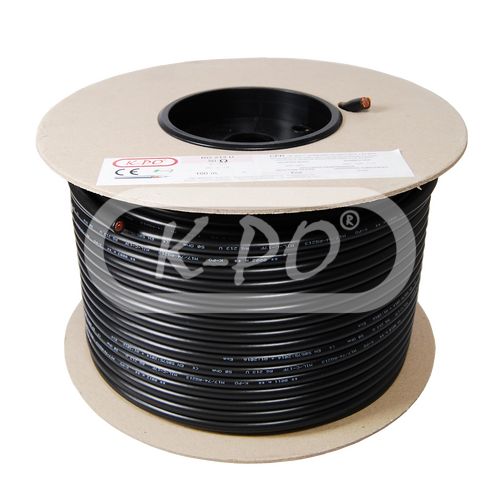

100 meter on roll.

Niet op voorraad - Levertijd in overleg
€ 219,95 (181.78 excl. 21% BTW)

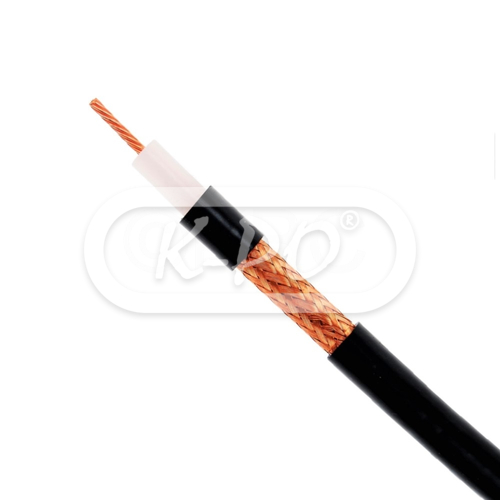

Features

  • Plain copper inner conductor: 7 x 0,75 mm
  • Low density polyethylene dielectric: ø 7,25 ± 0,18 mm
  • Plain copper outer conductor: 240 x 0,13 mm
  • Percentage coverage: 93%
  • Non-contaminating polyvinyl-chloride sheath: ø 10,3 ± 0,18 mm
  • Sheath color: Black - RAL 9004
  • Impedance: 50 ± 3 Ohm
  • Capacitance: 100 pF/m
  • Velocity ratio: 66%
  • Inner conductor resistance: 6 Ohm/Km
  • Temperature range: -30 °C / +70 °C

    Attenuations dB/100m

  • 5 MHz: 1.3 dB
  • 10 MHz: 1.9 dB
  • 50 MHz: 4.5 dB
  • 100 MHz: 6.6 dB
  • 200 MHz: 9.8 dB
  • 400 MHz: 14.1 dB
  • 500 MHz: 15.8 dB
  • 600 MHz: 17.5 dB
  • 800 MHz: 21.0 dB
  • 1000 MHz: 23.9 dB

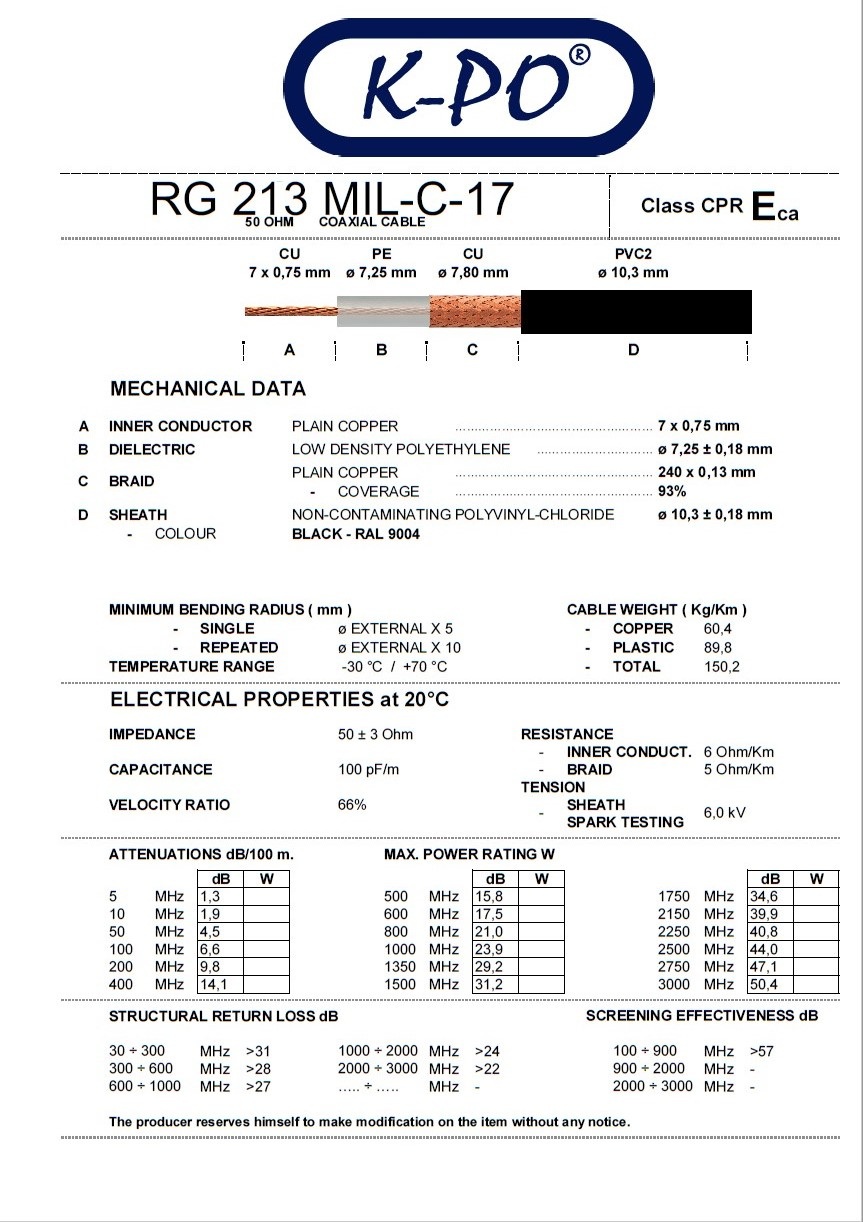

Downloads
