K-PO - RG 213 UBX K-PO - RG 213 UBX

K-PO - RG 213 UBX

Artikelnummer: 7462

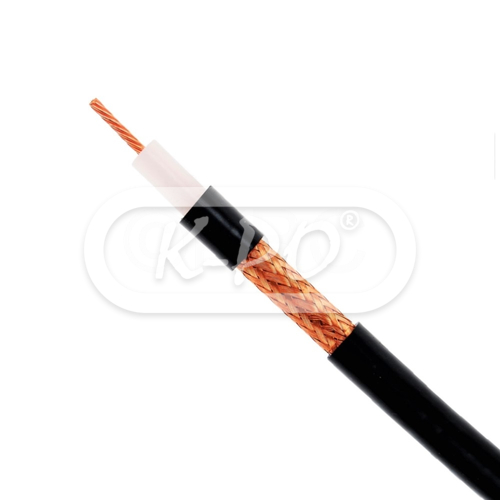

The K-PO RG 213 UBX is a high quality coax cable and has a CPR/ECA classification. For CB users that want a better quality cable then the standard RG 213 BX and for use with amateur radio.

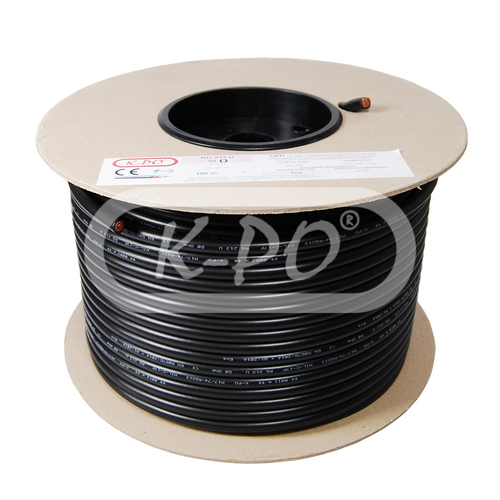

100 meter on roll.

Vandaag verstuurd - Stock: 2
€ 189,95 (156.98 excl. 21% BTW)

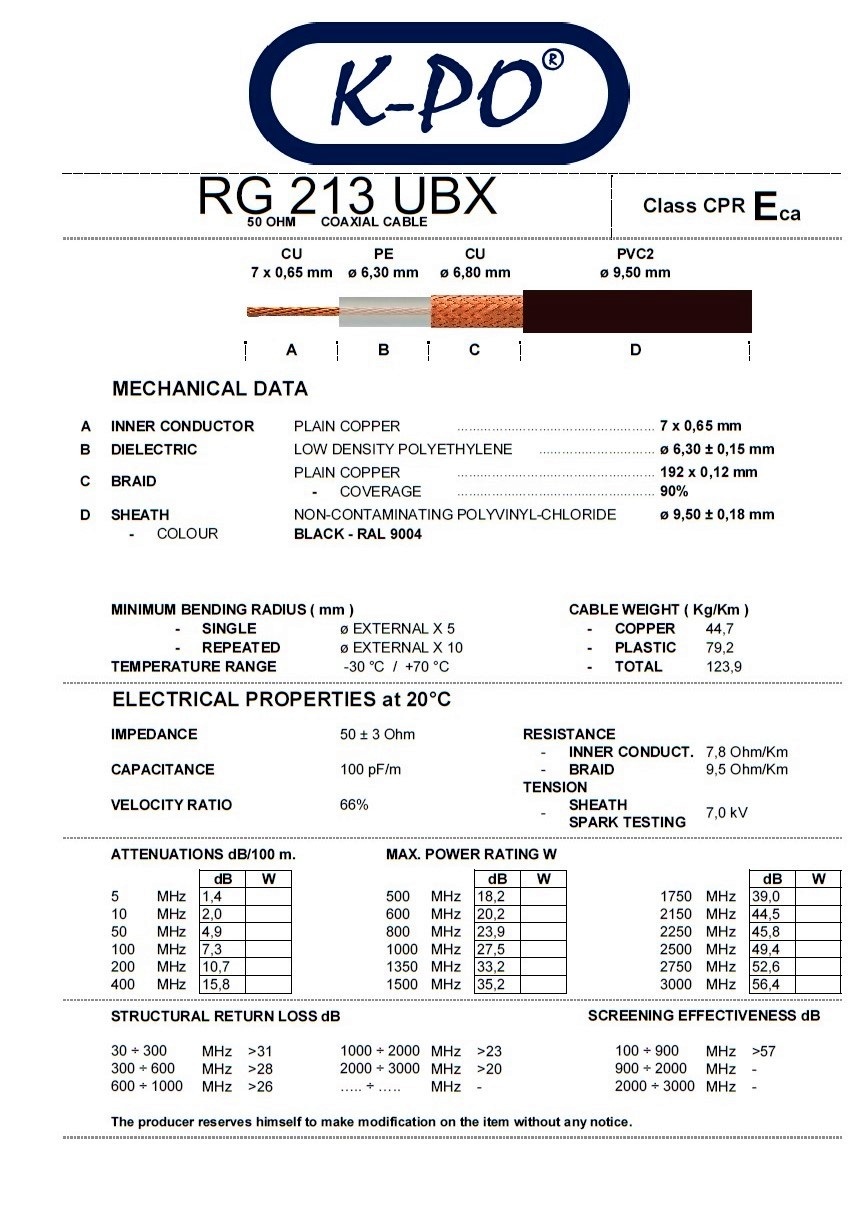

Features

  • Plain copper inner conductor: 7 x 0,65 mm
  • Low density polyethylene dielectric: ø 6,30 ± 0,15 mm
  • Plain copper outer conductor: 192 x 0,12 mm
  • Percentage coverage: 90%
  • Non-contaminating polyvinyl-chloride sheath: ø 9,50 ± 0,18 mm
  • Sheath color: Black - RAL 9004
  • Copper weight: 4.47 kg (100m)
  • Cable weight: 12.39 kg (100m)
  • Impedance: 50 ± 3 Ohm
  • Capacitance: 100 pF/m
  • Velocity ratio: 66%
  • Inner conductor resistance: 7,8 Ohm/Km
  • Temperature range: -30°C to +70°C

    Attenuations dB/100m

  • 5 MHz: 1.4 dB
  • 10 MHz: 2.0 dB
  • 50 MHz: 4.9 dB
  • 100 MHz: 7.3 dB
  • 200 MHz: 10.7 dB
  • 400 MHz: 15.8 dB
  • 500 MHz: 18.2 dB
  • 600 MHz: 20.2 dB
  • 800 MHz: 23.9 dB
  • 1000 MHz: 27.5 dB
