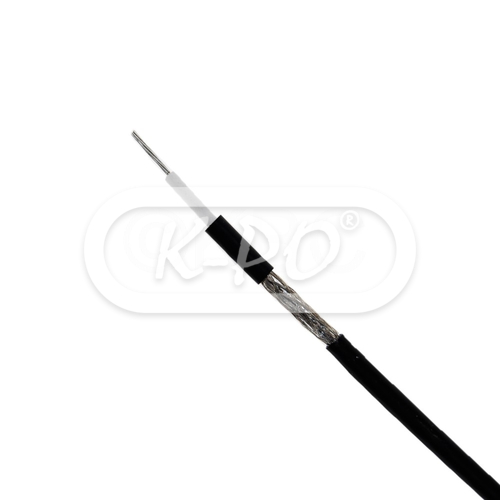

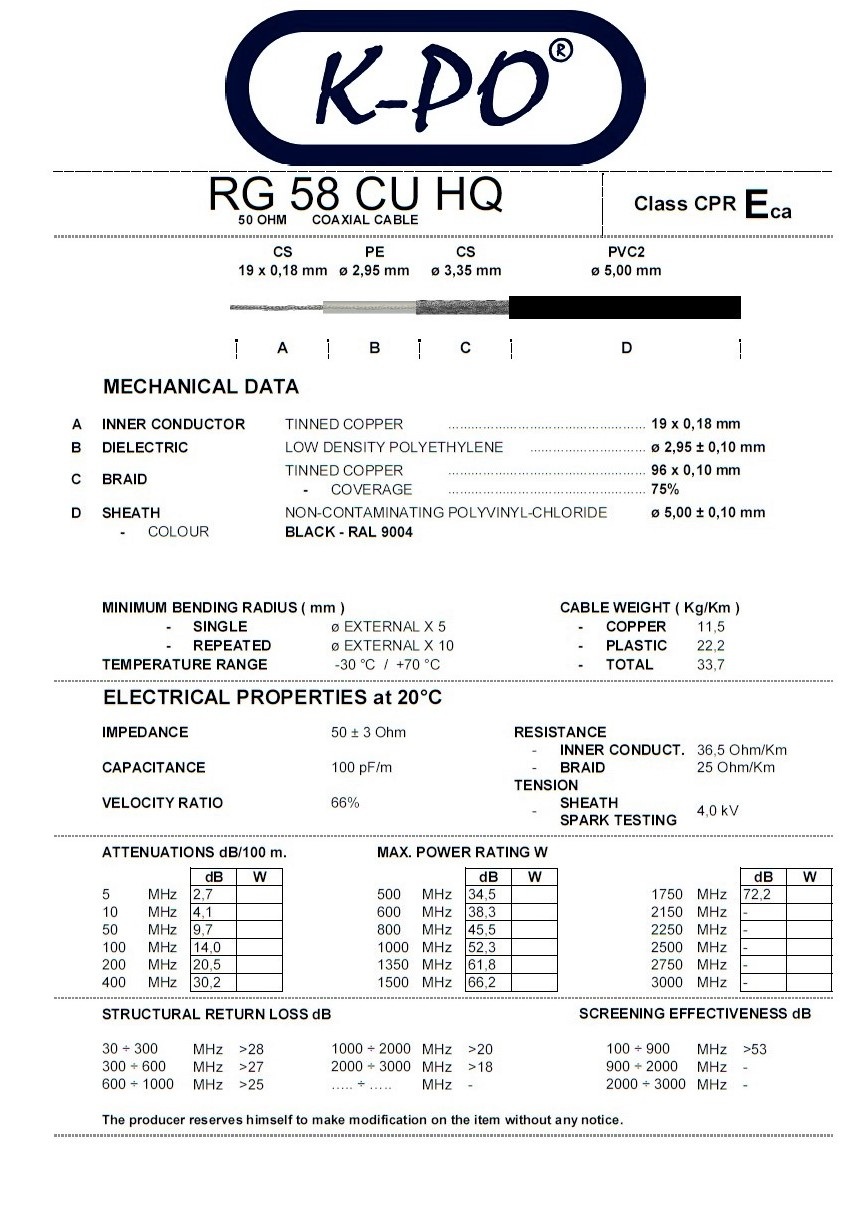

Features

• Plain copper inner conductor: 19 x 0,18 mm
• Low density polyethylene dielectric: ø 2.95 ± 0.10 mm
• Percentage coverage: 75%
• Non-contaminating polyvinyl-chloride sheath: ø 5.00 ± 0.10 mm
• Sheath color: Black - RAL 9004
• Copper weight: 1.15 kg (100m)
• Cable weight: 3.37 kg (100m)
• Impedance: 50 Ohm
• Capacitance: 100 pF/m
• Velocity ratio: 66%
• Inner conductor resistance: 36.5 Ohm/km
• Temperature range: -30°C to +70°C
• Tinned copper outer conductor: 96 x 0,10 mm

Attenuations dB/100m

• 5 MHz: 2.7 dB
• 10 MHz: 4.1 dB
• 50 MHz: 9.7 dB
• 100 MHz: 14.0 dB
• 200 MHz: 20.5 dB
• 400 MHz: 30.2 dB
• 500 MHz: 34.5 dB
• 600 MHz: 38.3 dB
• 800 MHz: 45.5 dB
• 1000 MHz: 52.3 dB
