Features

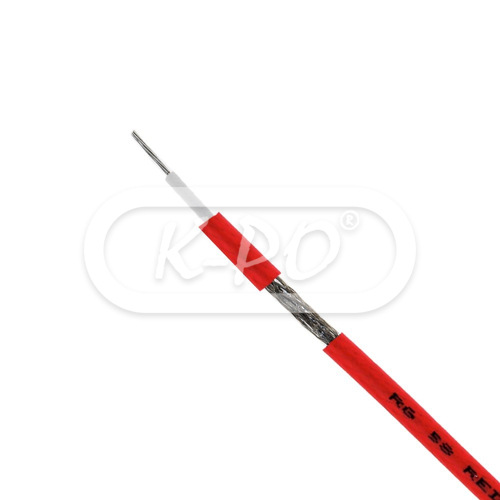

• Plain copper inner conductor: 19 x 0,18 mm
• Low density polyethylene dielectric: ø 2,95 ± 0,10 mm
• Percentage coverage: 95%

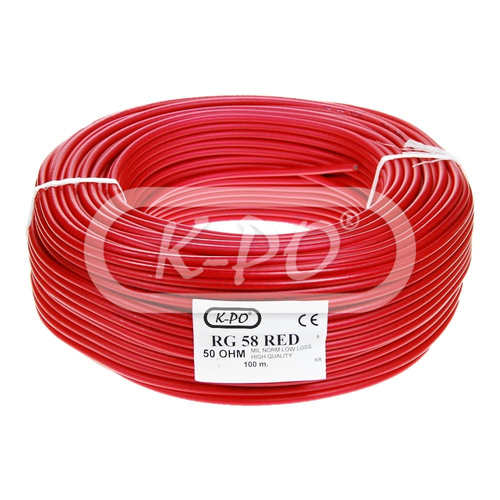

• Sheath color: Red kristal
• Copper weight: 1.87 kg (100m)
• Cable weight: 3.83 kg (100m)
• Impedance: 50 Ohm
• Capacitance: 100 pF/m
• Velocity ratio: 66%
• Inner conductor resistance: 36,5 Ohm/Km
• Temperature range: -30°C to +70°C
• Tinned copper outer conductor: 112 x 0,13 mm

Attenuations dB/100m

• 5 MHz: 2.9 dB
• 10 MHz: 4.3 dB
• 50 MHz: 10.2 dB
• 150 MHz: 18.2 dB
• 220 MHz: 22.8 dB
• 450 MHz: 33.0 dB
• 600 MHz: 38.9 dB
• 800 MHz: 45.8 dB
• 900 MHz: 48.9 dB
• 1000 MHz: 67.0 dB
