K-PO - RS-27

Artikelnummer: 900527

Barcode: 8781375102156

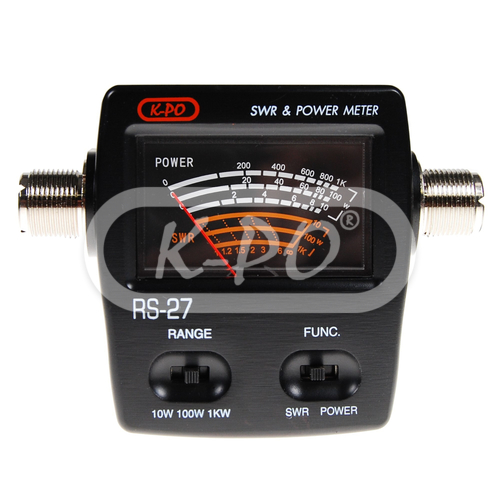

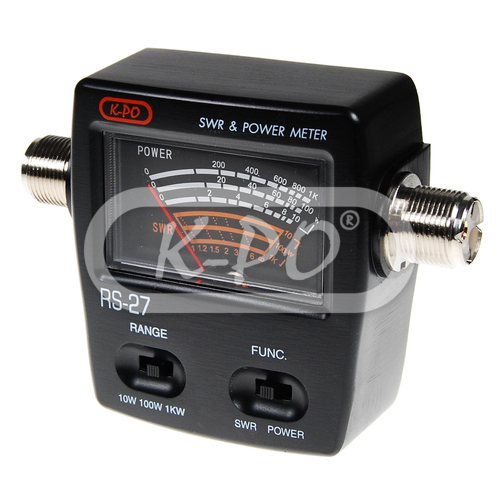

The K-PO RS-27 is a compact SWR and Power meter for the CB and 10 meter band. On the clear analogue meter you can read out easily the SWR of your antenna or the output power of your radio. Output power measuring till 1 kW.

Frequentie bereik: 26 - 30 MHz

Niet op voorraad - Levertijd in overleg

€ 49,95 (41.28 excl. 21% BTW)

Features

• Meter: Clear analogue meter
• Reading: Direct read out without calibration
• Insertion loss: Low insertion loss structure, can be connected permanently in your setup. 1 kW for short time measuring only.

Elektrische eigenschappen

• Impedance: 50 Ohm
• Power range: 10 / 100 / 1000 Watts
• Accuracy: 10 Watts: ± 10% (AVG) / 100 - 1000 Watts: ± 5% (AVG)
• Minimum Power for SWR: 3 Watts
• Insertion loss: 0.3 dB or lower
• Testing function: SWR and Power (FWD)
• Maximum power: 1000 Watts (short time)

Fysieke eigenschappen

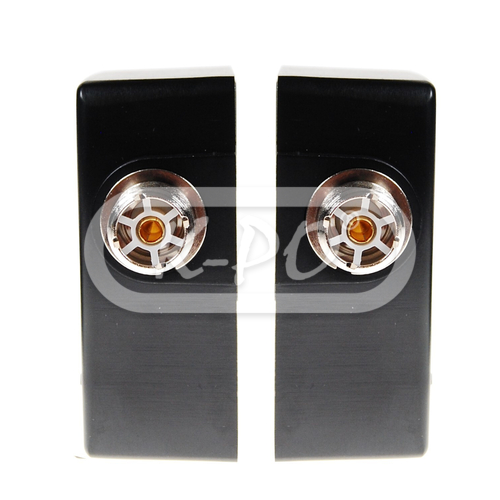

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 70 mm
• Height: 30 mm
• Width: 78 mm
• Weight: 175 gram

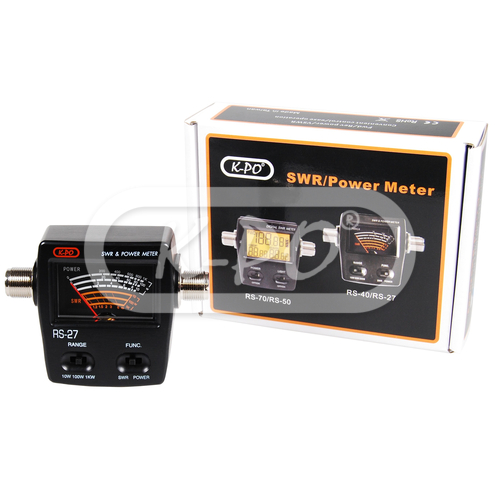

In de verpakking

• Meter: Yes
• Installation manual: English
