K-PO - RS-502 K-PO - RS-502 K-PO - RS-502 K-PO - RS-502

K-PO - RS-502

Artikelnummer: 600502

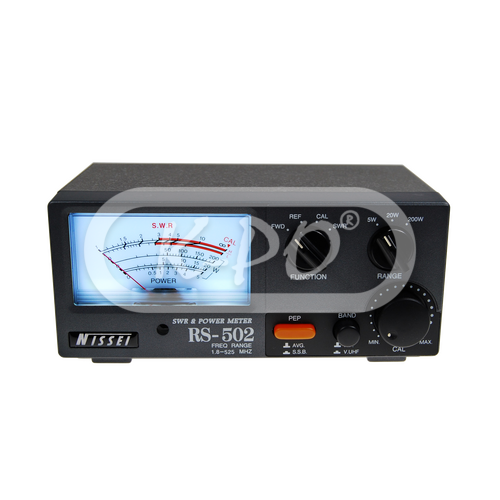

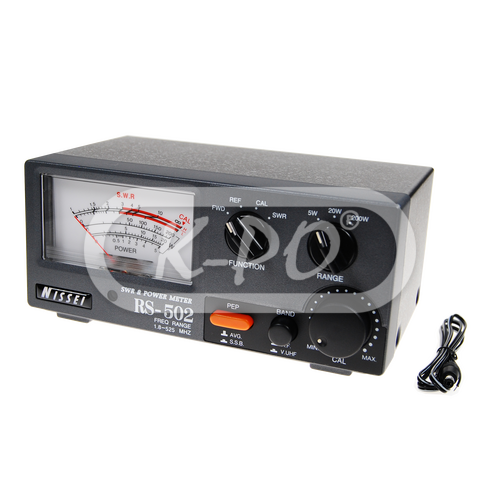

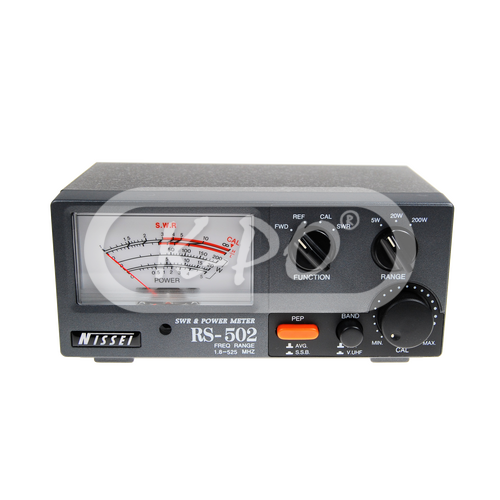

The K-PO RS-502 is a highly accurate SWR and Power meter for 1.8 - 525 MHz. For measuring Forward Power, Reflected Power and SWR. Band selection knob for switching between 1.8 - 200 MHz and 125 - 525 MHz. AVG / PEP switch to select average power or SSB / PEP.

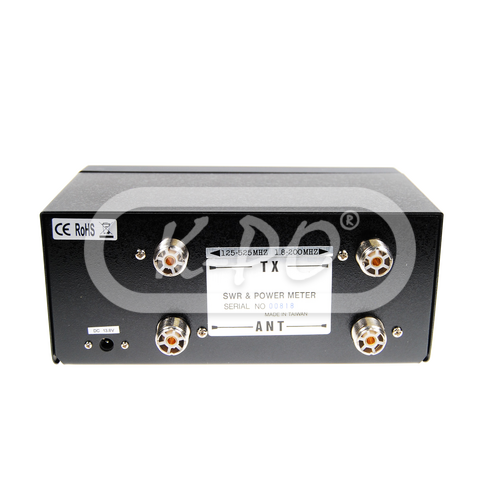

UHF-female in- and output connectors for 1.8 - 200 MHz and N-female in- and output connectors for 125 - 525 MHz.

Frequentie bereik: 1.8 - 200 / 125 - 525 MHz
Niet op voorraad - Levertijd in overleg
€ 109,95 (90.87 excl. 21% BTW)

Elektrische eigenschappen

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 5 / 20 / 200 Watts
  • Accuracy: 5 Watts: (AVG) ± 10%, (PEP) ± 15% / 20 - 200 Watts: (AVG) ± 5%, (PEP) ± 10%
  • Minimum Power for SWR: 1 Watt
  • Insertion loss: less than 0.1dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only

Fysieke eigenschappen

  • Input connector: 1.8 - 200 MHz: UHF (PL) female / 125 - 525 MHz: N female
  • Output connector: 1.8 - 200 MHz: UHF (PL) female / 125 - 525 MHz: N female
  • Length: 135 mm
  • Height: 85 mm
  • Width: 90 mm
  • Weight: 950 gram

In de verpakking

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English

Downloads
