K-PO - SW2M

Artikelnummer: 905200

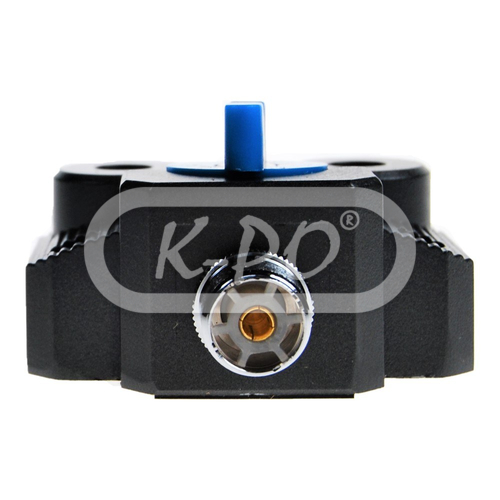

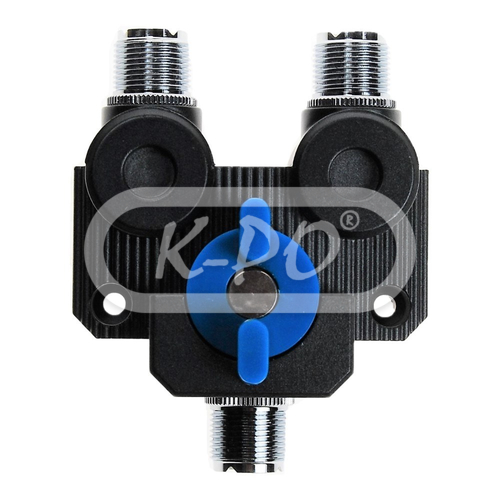

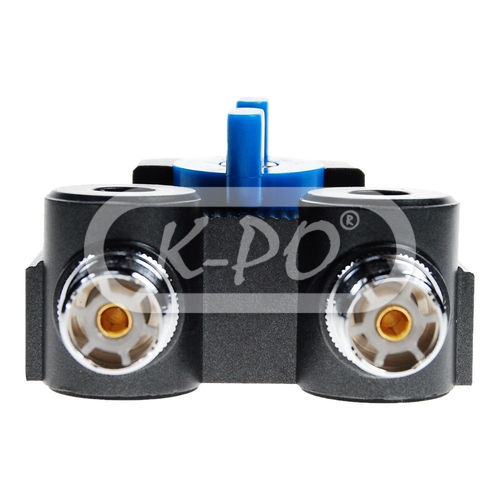

The K-PO SW2M UHF (PL) is a 2 way antenna switch with a UHF (PL) female input connector and 2x UHF (PL) female output connectors.

Frequentie bereik: Up to 1 GHz

Niet op voorraad - Levertijd in overleg

€ 41,95 (34.67 excl. 21% BTW)

Elektrische eigenschappen

• VSWR: 0-500 MHz: >=1.05 / 500 MHz - 1 GHz: >=1.1
• Insertion loss: 0-500 MHz: >=0.05dB / 500 MHz - 1 GHz: >=0.1dB
• Isolation: 0-500 MHz: <=70dB / 500 MHz - 1 GHz: <60dB
• Power range: 0-30 MHz: 2 kW / 30-200 MHz: 1.0 kW / 200-500 MHz: 500 W / 500 MHz - 1 GHz : 250 W

Fysieke eigenschappen

• Connector(s) type in: UHF (PL) female
• Connector(s) type out: UHF (PL) female
• Length: 90 mm
• Height: 70 mm
• Width: 30 mm
• Weight: 550 gram
